WIFI Intercoms - Ciser System


Panphones IP-SIP

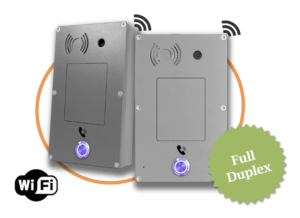

WIFI Full-duplex Panphone Series C

Anti-Vandalic WIFI intercom with CSIP Card


Anti-vandalism WIFI intercom for IP-SIP standard extension, with quality audio and full duplex communication, high resistance and durability with mechanical pushbutton and surface installation, for outdoor or indoor use.

With the same functionalities of the Panphone IP-SIP Series C Full duplex, adding WIFI functionality to facilitate installation in places that are difficult to access with conventional wiring. It is equipped for a surface installation, it has a treated aluminum box, resistant baked paint, hermetic seal, security screws and mechanical push buttons.

It allows automatic dialing to (PBX) IP-SIP extension standard through a mechanical press button.

It has enhanced audio features like full duplex audio communication, echo canceller, ambient noise reduction, and more. It allows up to 5 independent SIP accounts and it is possible to select among multiple codecs (g.722, g.726, g.729, g.711a/u, GSM and OPUS that allows bandwidth adjustment).

It is available a version with Color Camera that allows video calls and versions with Card Reader to facilitate access where is required.

It has activation relays (door opening) for remote use with a dial PIN code or in the same device with proximity card or QR code (camera version), for which schedules and time can be set.

It also includes the ability to connect to external devices (biometric readers, proximity, etc.) and manage I/O inputs and outputs for LEDs, Indicators and other devices, with the option of adding more digital inputs and extra relay output with OPTO card.

It has additional optional functionalities upon request, 10W audio amplifier card, extra RJ45 port, OPTO card with 4 inputs/outputs and 1 extra relay and the functionality of additional speaker and microphone (Requires OPTO card).

Its physical characteristics offer high resistance and durability, allowing its use in outdoor or indoor climatic events at any point with Wi-Fi network coverage. Its approximate wireless range is 100 meters in open spaces and 50 in closed spaces. It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments among others (see common uses).

Additionally, it facilitates maintenance work since it allows remote management and testing with public IP or through VPN.

They can be integrated with other external platforms through connection to databases, communication protocols and/or remote management or through APIs for special projects.

Available similar versions of the product in different colors (Red and Yellow). Please go to Emergency SOS Panphone section.

FeaturesProduct VersionsCommon uses

Versions*:

  • Surface, 1 Button
  • With IP color camera
  • With Proximity Card Reader
  • With IP color camera & Proximity Card Reader

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct Connection to IP SIP of PBX centrales IP with SIP standard vía WIFI
  • Up to 5 independent IP-SIP accounts.
  • Improved audio quality, Full Duplex audio, Echo Canceller and Ambient Noise Reduction.
  • Codecs: g.722, g.726, g.729, g.711a/u, GSM and OPUS.
  • WIFI IEE 802.11 b,g,n, at 2,4 GHz/300Mbps
  • Call status audio messages (Door open, call in progress, close door, among others) in Spanish and English
  • Remote administration via web interface.
  • Plate with 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • Door opening/relay activation locally by RFID (reader version) and QR code (camera version).
  • Programming of relay activation times and periods for PIN numeric codes, RFID and QR
  • Up to 250 users for PIN, RFID or QR.
  • Supports Video Call and Video Streaming with camera version.
  • Resistant anti-vandal case for indoor or outdoor for environmental conditions.
  • Illuminated indication (LED) in call status.
  • Extra IP port for connection of other devices.
  • Wiring required, UTP and AC Power in cases of non-POE installation.
  • Winegard ports for other devices (biometrics, readers, etc.)
  • LED ports for indicators.
  • TLS Coding
  • DHCP support
  • RS-485, MODBUS (Scada) protocols support
  • Administration, local and remote configuration via web interface and SMNP, either by Public IP or via VPN
  • Remote audio test (speaker and mic).
  • Traffic Log Management and accesses, exportable to .xls, .csv and .pdf.
  • Option for Additional OPTO card with 4 digital inputs and 1 relay output.
  • Option for 10W Audio-Amplifier Card.
  • Option for Extra RJ45 port.
  • Option for Extra Speaker and Microphone.
  • Option for 2 extra buttons.
  • Option for integration with third party APIs or external DDBB.
  • Option for event notification via SIP call.
  • It works with Centrals (PBX) with Asterisk IP software and power stations such as Alcaltel, Avaya, Cisco, Elastix, Epygi, Denwa, Matrix, Nec, Panasonic, Siemens, Hiper PBX, Xorcom, Yeastar and Zycoo, and others.

*Note: visit ‘ product’s versions’ to check references.

WIFI Full-duplex Panphone Series C

Reference

C514

Color Matt Grey RAL 9006
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera No
Card Reader No

WIFI Full-duplex Panphone Series C with Proximity Card Reader

Reference

C515

Color Matt Grey RAL 9006
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera No
Card Reader Yes



WIFI Full-duplex Panphone Series C with Color Camera

Reference

C516

Color Matt Grey RAL 9006
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera Yes
Card Reader No



WIFI Full-duplex Panphone Series C with Color Camera and Proximity Card Reader

Reference

C517

Color Matt Grey RAL 9006
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera Yes
Card Reader Yes
  • Centralized access control for multiple sites or doors.
  • For attended or unattended gateways
  • Care and geriatric environments.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • Intercom in prisons
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines
  • Tourist rental
  • Intercoms for operating rooms and hospitals, etc.
  • Public address system


Quote request

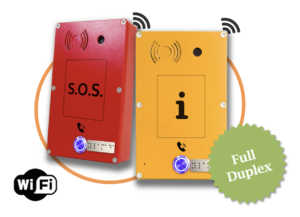

Emergency-SOS WIFI Full-duplex Panphone

Anti-Vandalic WIFI intercom for Emergencies with CSIP Card


Anti-vandalism WIFI intercom for IP-SIP extension standard, with quality audio and full duplex communication, high resistance and durability with mechanical pushbutton and surface installation, for outdoor or indoor use, for information and emergency uses.

With the same functionalities of the Panphone IP-SIP Series C Full duplex, adding WIFI functionality to facilitate installation in places that are difficult to access with conventional wiring. They are equipment for a surface installation, it has a treated aluminum box, resistant baked paint, hermetic seal, security screws and mechanical push buttons.

It allows automatic dialing to (PBX) IP-SIP extension standard through a mechanical press button.

Versions of Emergency-SOS WIFI Full-duplex Panphone are available in different colors for different applications, services or intercom projects: Yellow (Information) and Red (Emergency or SOS).

The Emergency-SOS IP Full-duplex Panphone are fully POE with enhanced audio characteristics like: high-quality audio, full duplex communication, echo canceller, ambient noise reduction, and more.

It has enhanced audio features like full duplex audio communication, echo canceller, ambient noise reduction, and more. It allows up to 5 independent SIP accounts and it is possible to select among multiple codecs (g.722, g.726, g.729, g.711a/u, GSM and OPUS that allows bandwidth adjustment).

It is available a version with Color Camera that allows videocalls. It also includes the ability to connect to external devices (biometric readers, proximity, etc.) and manage I/O inputs and outputs for LEDs, Indicators and other devices, with the option of adding more digital inputs and extra relay output with OPTO card.

It has additional optional functionalities upon request, 10W audio amplifier card, extra RJ45 port, OPTO card with 4 inputs/outputs and 1 extra relay and the functionality of additional speaker and microphone (Requires OPTO card).

The Emergency-SOS version is available to comply with the CTE SUA9 / SI 3-7 building standard.

Its physical characteristics offer high resistance and durability, allowing its use in outdoor or indoor climatic events at any point with Wi-Fi network coverage. Its approximate wireless range is 100 meters in open spaces and 50 in closed spaces. It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments among others (see common uses).

Additionally, it facilitates maintenance work since it allows remote management and testing with public IP or through VPN.

They can be integrated with other external platforms through connection to databases, communication protocols and/or remote management or through APIs for special projects.

FeaturesProduct VersionsCommon uses

Versions*:

  • Surface, 1 Button
  • With IP color camera
  • Yellow and Red

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct Connection to IP SIP of PBX centrales IP with SIP standard via WIFI
  • Up to 5 independent IP-SIP accounts.
  • Improved audio quality, Full Duplex audio, Echo Canceller and Ambient Noise Reduction.
  • Codecs: g.722, g.726, g.729, g.711a/u, GSM and OPUS.
  • WIFI IEE 802.11 b,g,n, at 2,4 GHz/300Mbps
  • Braille Label.
  • Call status audio messages (Door open, call in progress, close door, among others) in Spanish and English
  • Remote administration via web interface.
  • Plate with 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • Door opening/relay activation locally by QR code (camera version).
  • Programming of relay activation times and periods for PIN numeric codes, RFID and QR
  • Up to 250 users for PIN, RFID or QR.
  • Supports Video Call and Video Streaming with camera version.
  • Resistant anti-vandal case for indoor or outdoor for environmental conditions.
  • Illuminated indication (LED) in call status.
  • Extra IP port for connection of other devices.
  • Wiring required, UTP and AC Power in cases of non-POE installation.
  • Winegard ports for other devices (biometrics, readers, etc.)
  • LED ports for indicators.
  • TLS Coding
  • DHCP support
  • RS-485, MODBUS (Scada) protocols support
  • Administration, local and remote configuration via web interface and SMNP, either by Public IP or via VPN
  • Remote audio test (speaker and mic).
  • Traffic Log Management and accesses, exportable to .xls, .csv and .pdf.
  • Option for Additional OPTO card with 4 digital inputs and 1 relay output.
  • Option for 10W Audio-Amplifier Card.
  • Option for Extra RJ45 port.
  • Option for Extra Speaker and Microphone.
  • Option for 2 extra buttons.
  • Option for integration with third party APIs or external DDBB.
  • Option for event notification via SIP call.
  • It works with Centrals (PBX) with Asterisk IP software and power stations such as Alcaltel, Avaya, Cisco, Elastix, Epygi, Denwa, Matrix, Nec, Panasonic, Siemens, Hiper PBX, Xorcom, Yeastar and Zycoo, and others.

*Note: visit ‘ product’s versions’ to check references.

Emergency-SOS IP-SIP Full-duplex Panphone IP-SIP

Referencia

C514-E-A

C514-E-R

Color Yellow RAL 1023* Red RAL 3020*
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera No
Accessibility Braille and light indication (Led) for call status
Comply with CTE SUA9/SI 3-7 Yes

Emergency-SOS IP-SIP Full-duplex Panphone, with Color Camera

Reference

C516-E-A

C516-E-R

Color Yellow RAL 1023* Red RAL 3020*
Format Surface
Button or Numeric Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera Yes
Accessibility Braille and light indication (Led) for call status
Comply with CTE SUA9/SI 3-7 Yes



  • Centralized access control for multiple sites or doors.
  • For attended or unattended gateways
  • Remote sites and of difficult access.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For parking space
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines

Quote request

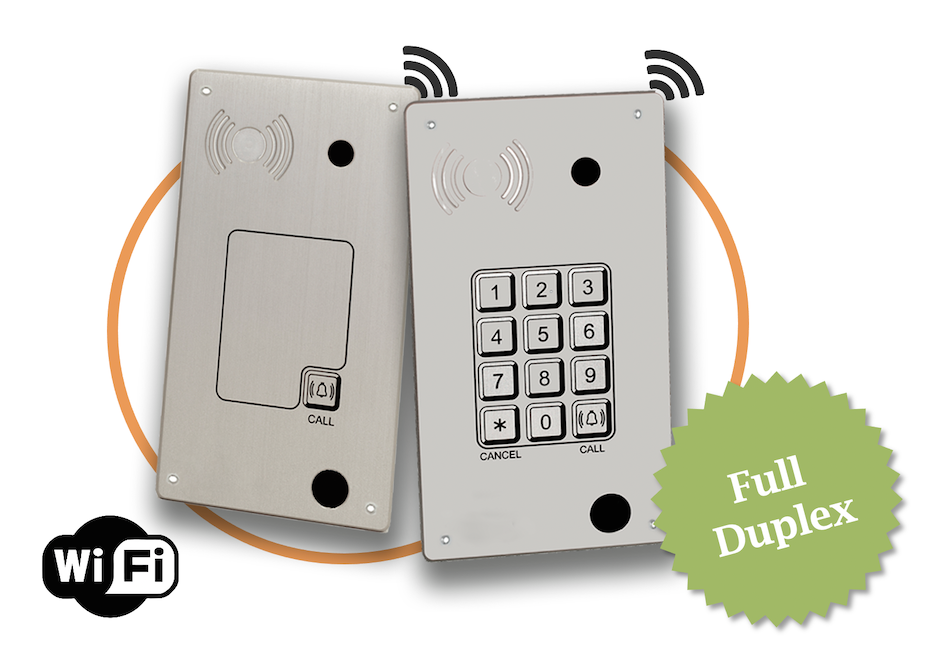

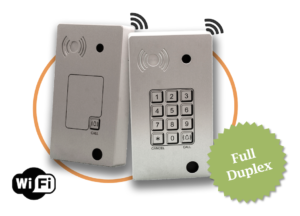

WIFI Full-Duplex Panphone Series 4

Anti-Vandalic WIFI intercom with CSIP Card


Anti-vandalism WIFI intercom for IP-SIP standard extension, with quality audio and full duplex communication, high resistance and durability with piezoelectric switches, for outdoor or indoor use.

With the same functionalities of the IP-SIP Series 4 Full-duplex Panphone, adding WIFI functionality to facilitate installation in places that are difficult to access with conventional wiring. They are equipment for surface or flush mount installation.

It allows automatic dialing to an IP-SIP PBX’s extension by touching the call button or dialing on the keyboard.

It has enhanced audio features like full duplex audio communication, echo canceller, ambient noise reduction, and more. It allows up to 5 independent SIP accounts and it is possible to select among multiple codecs (g.722, g.726, g.729, g.711a/u, GSM and OPUS that allows bandwidth adjustment).

Now available IP Panphone versions with Color Camera that allows video calls and versions with Card Reader to facilitate access where is required.

It has activation relays (door opening) for remote use or in the same device with a dial PIN code (keypad version), proximity card or QR code (camera version), for which schedules and time can be set.

It also includes the ability to connect to external devices (biometric readers, proximity, etc.) and manage I/O inputs and outputs for LEDs, Indicators and other devices, with the option of adding more digital inputs and extra relay output with OPTO card.

It has additional optional functionalities upon request, 10W audio amplifier card, extra RJ45 port, OPTO card with 4 inputs/outputs and 1 extra relay and the functionality of additional speaker and microphone (Requires OPTO card).

Its installation versatility and IP-55 casing allow it to be used outdoors and in hygienic environments due to its ease of cleaning at any point with Wi-Fi network coverage. Its approximate wireless range is 100 meters in open spaces and 50 in closed spaces. It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments and other types of building (see common uses).

Additionally, it facilitates maintenance work since it allows remote management and testing with public IP or through VPN.

They can be integrated with other external platforms through connection to databases, communication protocols and/or remote management or through APIs for special projects.

FeaturesProduct VersionsCommon uses

Versions*:

  • Surface or Flush mount
  • Numeric keyboard or button
  • With IP Color Camera
  • With Card reader
  • With Camera and card reader

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct Connection to IP SIP of PBX centrales IP with SIP standard via WIFI.
  • Up to 5 independent IP-SIP accounts.
  • Improved audio quality, Full Duplex audio, Echo Canceller and Ambient Noise Reduction.
  • Codecs: g.722, g.726, g.729, g.711a/u, GSM and OPUS.
  • WIFI IEE 802.11 b,g,n, at 2,4 GHz/300Mbps
  • Call status audio messages (Door open, call in progress, close door, among others) in Spanish and English
  • Remote administration via web interface.
  • Plate with 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • Door opening/relay activation locally by PIN code dialing (keypad version), RFID (reader version) and QR code (camera version).
  • Programming of relay activation times and periods for PIN numeric codes, RFID and QR
  • Up to 250 users for PIN, RFID or QR.
  • Supports Video Call and Video Streaming with camera version.
  • IP-55 Resistant anti-vandal case for indoor or outdoor for environmental and hygenic conditions.
  • Wiring required, UTP and AC Power in cases of non-POE installation.
  • Winegard ports for other devices (biometrics, readers, etc.)
  • LED ports for indicators.
  • TLS Coding
  • DHCP support
  • RS-485, MODBUS (Scada) protocols support
  • Administration, local and remote configuration via web interface and SMNP, either by Public IP or via VPN
  • Remote audio test (speaker and mic).
  • Traffic Log Management and accesses, exportable to .xls, .csv and .pdf.
  • Option for Additional OPTO card with 4 digital inputs and 1 relay output.
  • Option for 10W Audio-Amplifier Card.
  • Option for Extra RJ45 port.
  • Option for Extra Speaker and Microphone.
  • Option for 2 extra buttons.
  • Option for integration with third party APIs or external DDBB.
  • Option for event notification via SIP call.
  • It works with Centrals (PBX) with Asterisk IP software and power stations such as Alcaltel, Avaya, Cisco, Elastix, Epygi, Denwa, Matrix, Nec, Panasonic, Siemens, Hiper PBX, Xorcom, Yeastar and Zycoo, and others.

*Note: visit ‘ product’s versions’ to check references.

WIFI Full-duplex Series 4 Panphone

Reference

4514

4524

4534

4544

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera No
Card Reader No

WIFI Full-duplex Series 4 Panphone with Proximity Card Reader

Reference

4515

4525

4535

4545

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera No
Card Reader Yes

WIFI Full-duplex Series 4 Panphone with Color Camera

Reference

4516

4526

4536

4546

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera Yes
Card Reader No

WIFI Full-duplex Series 4 Panphone with Card Reader and Camera

Reference

4517

4527

4537

4547

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera Yes
Card Reader Yes
  • Centralized access control for multiple sites or doors.
  • For attended or unattended gateways
  • Care and geriatric environments.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • Intercom in prisons
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines
  • Tourist rental
  • Intercoms for operating rooms and hospitals, etc.
  • Public address system

Quote request

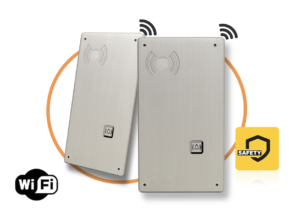

WIFI Security Panphone

Anti-Vandalic Security WIFI intercom with CSIP Card


Anti-vandal and Security WIFI intercom for IP-SIP standard extension, with quality audio and full duplex communication, high resistance and durability with piezoelectric Call button, for outdoor or indoor use.

It is the Panphone anti-vandal security version, with a completely flat surface without holes, for specific security applications or applications that do not require a camera or card reader in the same device. With WIFI functionality to facilitate installation in places that are difficult to access with conventional wiring.

It allows automatic dialing to an IP-SIP PBX’s extension by touching the piezoelectric call button.

It has enhanced audio features like full duplex audio communication, echo canceller, ambient noise reduction, and more. It allows up to 5 independent SIP accounts and it is possible to select among multiple codecs (g.722, g.726, g.711, GSM and OPUS that allows bandwidth adjustment).

Available version with additional connection via 4G/LTE that allows backup communication.

It also includes the ability to connect to external devices (biometric readers, proximity, etc.) and manage I/O inputs and outputs for LEDs, Indicators and other devices, with the option of adding more digital inputs and extra relay output with OPTO card.

It has additional optional functionalities upon request, 10W audio amplifier card, extra RJ45 port, OPTO card with 4 inputs/outputs and 1 extra relay and the functionality of additional speaker and microphone (Requires OPTO card).

Thanks to its IP-55 casing and its installation versatility, they can be used outdoors and in hygienic environments that require constant cleaning at any point with Wi-Fi network coverage. Its approximate wireless range is 100 meters in open spaces and 50 in closed spaces.

It is perfect for security applications among other access applications, for example, exterior doors for buildings or houses, prisons, multiple office locations or doors, garages and hospital environments (see common uses).

Additionally, it allows remote management and testing facilitating maintenance work.

It is possible its integration with other platforms through APIs as an option, ideal for special projects.

FeaturesProduct VersionsCommon uses

Available Versions*:

  • Flush mounting
  • With 4G/LTE

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Flat surface without holes for flush mounting
  • A piezo-electric call button
  • Direct Connection to IP SIP of PBX centrales IP with SIP standard via WIFI.
  • Up to 5 independent IP-SIP accounts.
  • Improved audio quality, Full Duplex audio, Echo Canceller and Ambient Noise Reduction.
  • Codecs: OPUS; g722, g726, g711 and GSM.
  • WIFI IEE 802.11 b,g,n, at 2,4 GHz/300Mbps
  • Call status audio messages (Door open, call in progress, close door, among others)
  • Remote administration via web interface.
  • Plate with 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • IP-55 Resistant anti-vandal case for indoor or outdoor for environmental and hygenic conditions.
  • Approximate wireless range of 100 meters in open spaces and 50 in closed spaces.
  • Power only wiring.
  • Winegard ports for other devices (biometrics, readers, etc.)
  • LED ports for indicators.
  • Remote audio test (speaker and mic)
  • Call traffic logs.
  • Option for Additional OPTO card with 4 digital inputs and 1 relay output.
  • Option for 10W Audio-Amplifier Card.
  • Option for Extra RJ45 port.
  • Option for Extra Speaker and Microphone.
  • Option for 2 extra buttons.
  • Option for integration with third party APIs.
  • Option for event notification via SIP call.
  • It works with Centrals (PBX) with Asterisk IP software and power stations such as Alcaltel, Avaya, Cisco, Elastix, Epygi, Denwa, Matrix, Nec, Panasonic, Siemens, Hiper PBX, Xorcom, Yeastar and Zycoo, and others.

*Note: visit ‘ product’s versions’ to check references.

WIFI Security Panphone

Reference

5534

Format Flush Mount
Button or piezo-electric Keyboard 1 button
Dimensions (HxWxD) mm External 217,41×128,8×8,6
Interior 180×91,40×30
Camera No
Card Reader No

WIFI & 4G/LTE Security Panphone

Reference

55349

Format Flush Mount
Button or piezo-electric Keyboard 1 button
Dimensions (HxWxD) mm External 217,41×128,8×8,6
Interior 180×91,40×30
Camera No
Card Reader No



  • Penitentiary Centers.
  • Centralized access control for multiple sites or doors.
  • Unattended gatehouses or guardhouses.
  • Hospital environment, accesses, operating
    rooms, etc.
  • Assistance zones in buildings and hotels.
  • Parking barriers and Tollgates.
  • Evelators
  • Roadside Emergency Callers (SOS points)
  • Public transportation stations
  • Gas stations, unattended service stations
  • HealthCare and geriatric environments.
  • Accessibility systems for reduced mobility people.
  • Vending machines
  • Public address system

Quote request

Go Up
