PCB Cards

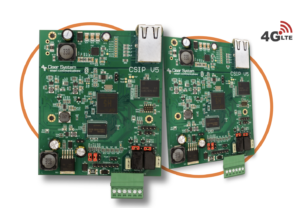

CSIP & CSIP 4G/LTE Card

CSIP Card


Intercom Card for standard IP-SIP extension, with quality audio and full duplex communication

It allows automatic dialing to an IP-SIP PBX’s extension by touching the external keyboard or call button.

The “IP-SIP only” or “IP-SIP plus 4G/LTE” communication versions are available with the possibility of connecting via IP and/or via the 4G/LTE mobile network, respectively.

The CSIP and CSIP 4G/LTE Cards are fully POE with enhanced audio characteristics like: high- quality audio, full duplex communication, echo canceller, ambient noise reduction, and more.

It allows up to 5 independent SIP accounts and it is possible to select among multiple codecs (g.722, g.726, g.711, GSM and OPUS that allows bandwidth adjustment).
It has activation relays for external devices, which can be activated by dialling code from a remote extension or directly from the keyboard.

It has specific pin connectors for external devices such as keyboard, pushbutton, loudspeaker and proximity card reader.

Allows the connection of an IP camera to be used in IP video calls or for connection to centralized or remote video surveillance systems.

It also includes the ability to connect to external devices (biometric readers, proximity, etc.) and manage I/O inputs and outputs for LEDs, indicators and other devices.

It is possible to attach it an optional OPTO Card that includes additionally 4 digital inputs and 1 relay output.

It facilitates installation and maintenance tasks because it can be managed and tested remotely.
It can also be integrated with other platforms through APIs or serial ports.

Any customization is possible, since the integrated PCB card allows installation in any preferred device, box, or structure, allowing its use in multiple applications and projects. It can be a component within a set of more complex systems.
It can be used to develop products or manufacture solutions using the branding of the integrator.

FeaturesProduct VersionsCommon uses

Available Versions*:

  • IP-SIP
  • IP-SIP & 4G/LTE

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct Connection to IP SIP standard PBX
  • Up to 5 independent IP-SIP accounts.
  • Improved audio quality, Full Duplex audio, Echo Canceller and Ambient Noise Reduction.
  • Codecs: OPUS; g722, g726, g711 and GSM.
  • Call status audio messages (Door open, call in progress, close door, among others)
  • Remote administration via web interface.
  • Plate with 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • PCB Card Format for any Case, device or structure.
  • Illuminated indication (LED) in call status.
  • Specific connectors for push button, Keyboard, Proximity Card reader and IP Camera.
  • Wiring required, UTP and AC Power in cases of non-POE installation.
  • Winegard ports for other devices (biometrics, readers, etc.)
  • LED ports for indicators.
  • TLS Coding
  • DHCP support
  • RS-485, MODBUS (Scada) protocols support
  • Monitoring/configuration local/remote via web or SNMP
  • Remote audio test (speaker and mic)
  • Call traffic logs.
  • Option for Additional OPTO card with 4 digital inputs and 1 relay output.
  • Option for integration with third party APIs.
  • Option for event notification via SIP call.
  • It works with Centrals (PBX) with Asterisk IP software and power stations such as Alcaltel, Avaya, Cisco, Elastix, Epygi, Denwa, Matrix, Nec, Panasonic, Siemens, Hiper PBX, Xorcom, Yeastar and Zycoo, and others.

*Note: visit ‘ product’s versions’ to check references.

CSIP Card

Reference

CSIP

Communication Protocol IP
Mobile Network Communication No
Frequency Bands LTE-TDD,LTE-FDD, UMTS/HSPA+, GSM/GPRS/EDGE 850/900/1800/1900MHz No
Dimensions (HxWxD) mm 119x85x16,9 mm

CSIP 4G/LTE Card

Reference

CSIP 4G/LTE

Communication Protocol IP and/or 4G/LTE
Comunicación por Red móvil Yes, 2G/3G/4G
Frequency Bands LTE-TDD,LTE-FDD, UMTS/HSPA+, GSM/GPRS/EDGE 850/900/1800/1900MHz Yes
Dimensions (HxWxD) mm 119x 85x 18,5 mm



  • Centralized access control for multiple sites or doors.
  • Unattended gatehouses or guardhouses.
  • Healthcare and geriatric environments.
  • Assistance zones in buildings and hotels.
  • Parking barriers and Tollgates.
  • Elevators and Kiosks
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Non attended Fuel stations, self-service.
  • Accessibility systems for reduced mobility people.
  • Intercom in prisons
  • Vending machines
  • Intercoms for operating rooms and hospitals, etc.
  • Public address system
Ask for quote

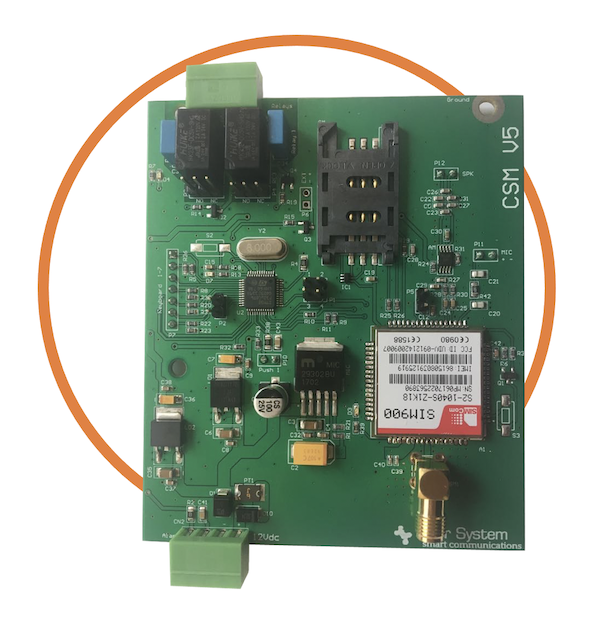

GSM Card

Intercom Card for GSM Mobile Cellular line


Intercom Card for standard Mobile Cellular line

Automatic dial to a phone number by pressing external button or keyboard through the cellular mobile network. It can be used as intercom or remote access control.

It is ideal for establishments where wiring is not possible or required (voice or data), allowing greater versatility and fast in installation.

It allows dialing up to 10 pre-configured numbers that are dialed sequentially in case there is an error in the call or no answer.

It has specific pin connectors for external devices such as keyboard, pushbutton, loudspeaker and proximity card reader.

It has 2 dry contact relays that operate independently, for connection of electric doors, which can be activated from remote telephone (with code, SMS or missed call). They can also be activated from external devices (such as card readers, biometric, proximity, etc.), since it has digital inputs to which buttons and sensors can also be connected. It can generate alarms by calling a telephone number with the activation of some sensor input.

GSM intercom cards can have pre-recorded messages that indicate the status or activity. These messages can be in several languages, Spanish (Spanish), English, Portuguese and Catalan, are available, other languages ​​upon request.

It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments and so on (see common uses).

Any customization is possible , since the integrated PCB card allows installation in any preferred device, box, or structure, allowing its use in multiple applications and projects. It can be a component within a set of more complex systems.
It can be used to develop products or manufacture solutions using the branding of the integrator.

FeaturesProduct VersionsCommon uses

Available Versions*:

  • GSM PCB Card

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct connection via telephone by Cellular Mobile Line.
  • Connectors for external devices such as keyboard, pushbutton, loudspeaker and proximity card reader.
  • Sequence dialing to 10 programmed numbers.
  • With 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any telephone or by making a call or SMS
  • Opening doors by dailing code from external keyboard
  • PCB Card Format for any Case, device or structure.
  • Loudspeaker included of 1W output
  • Contact input (sensors, alarms, etc.) to make a call.
  • Wiring, AC power
  • It works with the most common mobile cellular network frequencies (850, 900, 1800 and 1900 Mhz), which allows its use in coverage areas of different networks.

*Note: visit ‘product’s versions’ to check references.

GSM PCB Card

Reference

4039

Communication Protocol GSM
Mobile Network Communication Yes
Frequency Bands 850, 900, 1800 y 1900 Mhz Yes
Dimensions (HxWxD) mm 100x85x15 mm
  • Centralized access control for multiple sites or doors.
  • Difficult access Remote sites.
  • Unattended gatehouses or guardhouses.
  • Parking barriers and Tollgates.
  • Healthcare and geriatric environments
  • Gas stations, unattended service stations
  • For elevators and kiosks
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • Intercom in prisons
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Intercoms for operating rooms and hospitals, etc.
  • Vending machines

Ask for quote

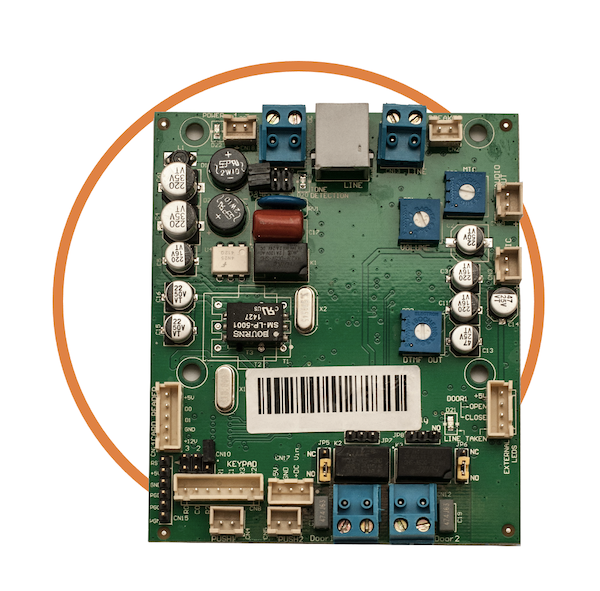

Analog Card

Intercom Analog Card


Intercom Card for standard Analog extension

It allows automatic dialing to standard PBX extension through an external press button or keyboard. It can be used as intercom or access control.

It has specific pin connectors for external devices such as keyboard, pushbutton, loudspeaker, proximity card reader and IP camera.

It has 2 dry contact relays that operate independently, for connection of electric doors, which can be activated from remote telephone (with code, SMS or missed call). They can also be activated from external devices (such as card readers, biometric, proximity, etc.), since it has digital inputs to which buttons and sensors can also be connected. It can generate alarms by calling a telephone number with the activation of some sensor input.

It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments and so on (see common uses).

Any customization is possible , since the integrated PCB card allows installation in any preferred device, box, or structure, allowing its use in multiple applications and projects. It can be a component within a set of more complex systems.

It can be used to develop products or manufacture solutions using the branding of the integrator.

FeaturesProduct VersionsCommon uses

Available Versions*:

  • Analog PCB Card

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct Connection to analog extension of standard PBX
  • Connectors for external devices such as keyboard, pushbutton, loudspeaker and proximity card reader.
  • With 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension
  • Opening doors by dailing code from external keyboard
  • PCB Card Format for any Case, device or structure.
  • Loudspeaker included of 1W output
  • Contact input (sensors, alarms, etc.) to make a call.
  • 2 wire cabling and Wiring AC power
  • It works with all PBX that has a conventional analog EXT.

*Note: visit ‘product’s versions’ to check references.

Analog PCB Card

Reference

3038

Communication Protocol Analog ext.
PBX Communication Yes
Dimensions (HxWxD) mm 100x85x15 mm
  • Centralized access control for multiple sites or doors.
  • Unattended gatehouses or guardhouses.
  • Parking barriers and Tollgates.
  • Healthcare and geriatric environments
  • Gas stations, unattended service stations
  • For elevators and kiosks
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • Intercom in prisons
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Intercoms for operating rooms and hospitals, etc.
  • Vending machines
  • PA systems

Ask for quote
