IP-SIP Full-duplex Panphone Series C

Anti-Vandalic IP-SIP intercom with CSIP Card


Anti-vandalism intercom for IP-SIP standard extension, with quality audio and full duplex communication, high resistance and durability with mechanical pushbutton and surface installation, for outdoor or indoor use.

It has the same functionalities of the IP Full-duplex Panphone Series 4 with different format of external presentation. It is equipped for a surface installation, it has a treated aluminum box, resistant baked paint, hermetic seal, security screws and mechanical push buttons.

It allows automatic dialing to (PBX) IP-SIP extension standard through a mechanical press button.

The IP Full-duplex Panphone Series C are fully POE with enhanced audio characteristics like: high-quality audio, full duplex communication, echo canceller, ambient noise reduction, and more.

It has enhanced audio features like full duplex audio communication, echo canceller, ambient noise reduction, and more. It allows up to 5 independent SIP accounts and it is possible to select among multiple codecs (g.722, g.726, g.729, g.711a/u, GSM and OPUS that allows bandwidth adjustment).

Available version with additional connection via 4G/LTE that allows backup communication.

It is available a version with Color Camera that allows video calls and versions with Card Reader to facilitate access where is required.

It has activation relays (door opening) for remote use with a dial PIN code or in the same device with proximity card or QR code (camera version), for which schedules and time can be set.

It also includes the ability to connect to external devices (biometric readers, proximity, etc.) and manage I/O inputs and outputs for LEDs, Indicators and other devices, with the option of adding more digital inputs and extra relay output with OPTO card.

It has additional optional functionalities upon request, 10W audio amplifier card, extra RJ45 port, OPTO card with 4 inputs/outputs and 1 extra relay and the functionality of additional speaker and microphone (Requires OPTO card).

Its physical characteristics also offer high strength and durability, allowing to be used outdoors to face the climet changes. It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments among others (see common uses).

Additionally, it facilitates maintenance work since it allows remote management and testing with public IP or through VPN.

They can be integrated with other external platforms through connection to databases, communication protocols and/or remote management or through APIs for special projects.

Available similar versions of the product in different colors (Red and Yellow). Please go to Emergency SOS Panphone section.

FeaturesProduct VersionsCommon uses

Available Versions*:

  • Surface
  • 1 Button
  • With IP color camera
  • With Card reader
  • With IP Camera and card reader
  • With 4G/LTE

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct Connection to IP SIP of PBX centrales IP with SIP standard
  • Up to 5 independent IP-SIP accounts.
  • Improved audio quality, Full Duplex audio, Echo Canceller and Ambient Noise Reduction.
  • Codecs: g.722, g.726, g.729, g.711a/u, GSM and OPUS.
  • Call status audio messages (Door open, call in progress, close door, among others) in Spanish and English
  • Remote administration via web interface.
  • Plate with 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • Door opening/relay activation locally by RFID (reader version) and QR code (camera version).
  • Programming of relay activation times and periods for PIN numeric codes, RFID and QR
  • Up to 250 users for PIN, RFID or QR.
  • Supports Video Call and Video Streaming with camera version.
  • Resistant anti-vandal case for indoor or outdoor for environmental conditions.
  • Illuminated indication (LED) in call status.
  • Extra IP port for connection of other devices.
  • Wiring required, UTP and AC Power in cases of non-POE installation.
  • Winegard ports for other devices (biometrics, readers, etc.)
  • LED ports for indicators.
  • TLS Coding
  • DHCP support
  • RS-485, MODBUS (Scada) protocols support
  • Administration, local and remote configuration via web interface and SMNP, either by Public IP or via VPN
  • Remote audio test (speaker and mic).
  • Traffic Log Management and accesses, exportable to .xls, .csv and .pdf.
  • Option for Additional OPTO card with 4 digital inputs and 1 relay output.
  • Option for 10W Audio-Amplifier Card.
  • Option for Extra RJ45 port.
  • Option for Extra Speaker and Microphone.
  • Option for 2 extra buttons.
  • Option for integration with third party APIs or external DDBB.
  • Option for event notification via SIP call.
  • It works with Centrals (PBX) with Asterisk IP software and power stations such as Alcaltel, Avaya, Cisco, Elastix, Epygi, Denwa, Matrix, Nec, Panasonic, Siemens, Hiper PBX, Xorcom, Yeastar and Zycoo, and others.

*Note: visit ‘ product’s versions’ to check references.

IP-SIP Full-duplex Panphone Series C

Reference

C510

Color Matt Grey RAL 9006
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera No
Lector de Tarjeta No



IP-SIP Full-duplex Panphone Series C with Color Camera

Reference

C511

Color Matt Grey RAL 9006
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera Yes
Lector de Tarjeta No



IP-SIP Full-duplex Panphone Series C with Card Reader

Reference

C512

Color Matt Grey RAL 9006
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera No
Lector de Tarjeta Yes



IP-SIP Full-duplex Panphone Series C with Card Reader and Color Camera

Reference

C513

Color Matt Grey RAL 9006
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera Yes
Card Reader Yes



IP-SIP & 4G/LTE Panphone Series C

Reference

C5109

Color Matt Grey RAL 9006
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera No
Lector de Tarjeta No



IP-SIP & 4G/LTE Panphone Series C with Color Camera

Reference

C5119

Color Matt Grey RAL 9006
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera Yes
Lector de Tarjeta No



IP-SIP & 4G/LTE Panphone Series C with Card Reader

Reference

C5129

Color Matt Grey RAL 9006
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera No
Lector de Tarjeta Yes



IP-SIP & 4G/LTE Panphone Series C with Card Reader and Color Camera

Reference

C5139

Color Matt Grey RAL 9006
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera Yes
Card Reader Yes



  • Centralized access control for multiple sites or doors.
  • For attended or unattended gateways
  • Care and geriatric environments.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • Intercom in prisons
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines
  • Tourist rental
  • Intercoms for operating rooms and hospitals, etc.
  • Public address system
Quote request

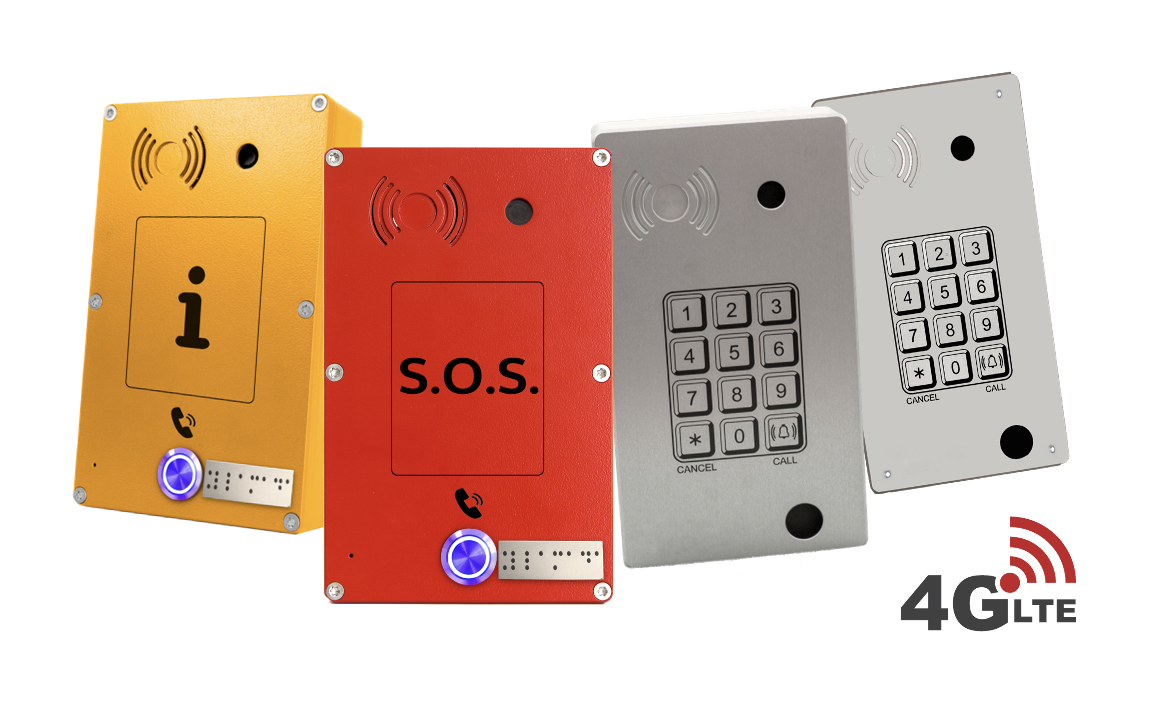

Emergency-SOS IP-SIP Full-duplex Panphone

Anti-Vandalic IP-SIP intercom for Emergencies with CSIP Card


Anti-vandalism intercom for IP-SIP extension standard, with quality audio and full duplex communication, high resistance and durability with mechanical pushbutton and surface installation, for outdoor or indoor use, for information and emergency uses.

They are equipment for a surface installation, it has a treated aluminum box, resistant baked paint, hermetic seal, security screws and mechanical push buttons.

It allows automatic dialing to (PBX) IP-SIP extension standard through a mechanical press button.

Versions of Emergency-SOS IP-SIP Full-duplex Panphone are available in different colors for different applications, services or intercom projects: Yellow (Information) and Red (Emergency or SOS).

The Emergency-SOS IP Full-duplex Panphone are fully POE with enhanced audio characteristics like: high-quality audio, full duplex communication, echo canceller, ambient noise reduction, and more.

It has enhanced audio features like full duplex audio communication, echo canceller, ambient noise reduction, and more. It allows up to 5 independent SIP accounts and it is possible to select among multiple codecs (g.722, g.726, g.729, g.711a/u, GSM and OPUS that allows bandwidth adjustment).

Available version with additional connection via 4G/LTE that allows backup communication.

It is available a version with Color Camera that allows videocalls. It also includes the ability to connect to external devices (biometric readers, proximity, etc.) and manage I/O inputs and outputs for LEDs, Indicators and other devices, with the option of adding more digital inputs and extra relay output with OPTO card.

It has additional optional functionalities upon request, 10W audio amplifier card, extra RJ45 port, OPTO card with 4 inputs/outputs and 1 extra relay and the functionality of additional speaker and microphone (Requires OPTO card).

The Emergency-SOS version is available to comply with the CTE SUA9 / SI 3-7 building standard.

Its physical characteristics also offer high strength and durability, allowing to be used outdoors to face the climet changes. It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments among others (see common uses).

Additionally, it facilitates maintenance work since it allows remote management and testing with public IP or through VPN.

They can be integrated with other external platforms through connection to databases, communication protocols and/or remote management or through APIs for special projects.

FeaturesProduct VersionsCommon uses

Available Versions*:

  • Surface
  • 1 Button
  • With IP color camera
  • Yellow and Red
  • With 4G/LTE

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct Connection to IP SIP of PBX centrales IP with SIP standard
  • Up to 5 independent IP-SIP accounts.
  • Improved audio quality, Full Duplex audio, Echo Canceller and Ambient Noise Reduction.
  • Codecs: g.722, g.726, g.729, g.711a/u, GSM and OPUS.
  • Braille Label.
  • Call status audio messages (Door open, call in progress, close door, among others) in Spanish and English
  • Remote administration via web interface.
  • Plate with 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • Door opening/relay activation locally by QR code (camera version).
  • Programming of relay activation times and periods for PIN numeric codes, RFID and QR
  • Up to 250 users for PIN, RFID or QR.
  • Supports Video Call and Video Streaming with camera version.
  • Resistant anti-vandal case for indoor or outdoor for environmental conditions.
  • Illuminated indication (LED) in call status.
  • Extra IP port for connection of other devices.
  • Wiring required, UTP and AC Power in cases of non-POE installation.
  • Winegard ports for other devices (biometrics, readers, etc.)
  • LED ports for indicators.
  • TLS Coding
  • DHCP support
  • RS-485, MODBUS (Scada) protocols support
  • Administration, local and remote configuration via web interface and SMNP, either by Public IP or via VPN
  • Remote audio test (speaker and mic).
  • Traffic Log Management and accesses, exportable to .xls, .csv and .pdf.
  • Option for Additional OPTO card with 4 digital inputs and 1 relay output.
  • Option for 10W Audio-Amplifier Card.
  • Option for Extra RJ45 port.
  • Option for Extra Speaker and Microphone.
  • Option for 2 extra buttons.
  • Option for integration with third party APIs or external DDBB.
  • Option for event notification via SIP call.
  • It works with Centrals (PBX) with Asterisk IP software and power stations such as Alcaltel, Avaya, Cisco, Elastix, Epygi, Denwa, Matrix, Nec, Panasonic, Siemens, Hiper PBX, Xorcom, Yeastar and Zycoo, and others.

*Note: visit ‘ product’s versions’ to check references.

Emergency-SOS IP-SIP Full-duplex Panphone

Referencia

C510-A-E

C510-R-E

Color Yellow RAL 1023* Red RAL 3020*
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera No
Accessibility Braille and light indication (Led) for call status
Comply with CTE SUA9/SI 3-7 Yes

Emergency-SOS IP-SIP Full-duplex Panphone, with Color Camera

Reference

C511-A-E

C511-R-E

Color Yellow RAL 1023* Red RAL 3020*
Format Surface
Button or Numeric Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera Yes
Accessibility Braille and light indication (Led) for call status
Comply with CTE SUA9/SI 3-7 Yes

Emergency-SOS IP-SIP & 4G/LTE Panphone

Referencia

C5109-A-E

C5109-R-E

Color Yellow RAL 1023* Red RAL 3020*
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera No
Accessibility Braille and light indication (Led) for call status
Comply with CTE SUA9/SI 3-7 Yes

Emergency-SOS IP-SIP & 4G/LTE Panphone, with Color Camera

Reference

C5119-A-E

C5119-R-E

Color Yellow RAL 1023* Red RAL 3020*
Format Surface
Button or Numeric Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera Yes
Accessibility Braille and light indication (Led) for call status
Comply with CTE SUA9/SI 3-7 Yes



  • Centralized access control for multiple sites or doors.
  • For attended or unattended gateways
  • Remote sites and of difficult access.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For parking space
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines

Datasheet ENG


Quote request



IP-SIP Full-Duplex Panphone Series 4

Anti-Vandalic IP-SIP intercom with CSIP Card


Anti-vandalism intercom for IP-SIP standard extension, with quality audio and full duplex communication, high resistance and durability with piezoelectric switches, for outdoor or indoor use.

The IP-SIP Panphones Series 4 (Full-duplex) are fully POE with enhanced audio characteristics like: high-quality audio, full duplex communication, echo canceller, ambient noise reduction, and more.

It has enhanced audio features like full duplex audio communication, echo canceller, ambient noise reduction, and more. It allows up to 5 independent SIP accounts and it is possible to select among multiple codecs (g.722, g.726, g.729, g.711a/u, GSM and OPUS that allows bandwidth adjustment).

Available version with additional connection via 4G/LTE that allows backup communication.

Now available IP Panphone versions with Color Camera that allows video calls and versions with Card Reader to facilitate access where is required.

It has activation relays (door opening) for remote use or in the same device with a dial PIN code (keypad version), proximity card or QR code (camera version), for which schedules and time can be set.

It also includes the ability to connect to external devices (biometric readers, proximity, etc.) and manage I/O inputs and outputs for LEDs, Indicators and other devices, with the option of adding more digital inputs and extra relay output with OPTO card.

It has additional optional functionalities upon request, 10W audio amplifier card, extra RJ45 port, OPTO card with 4 inputs/outputs and 1 extra relay and the functionality of additional speaker and microphone (Requires OPTO card).

It has a IP-55 casing and its installation versatility, they can be used outdoors and in hygienic environments that require constant cleaning. It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments and other types of building (see common uses).

Additionally, it facilitates maintenance work since it allows remote management and testing with public IP or through VPN.

They can be integrated with other external platforms through connection to databases, communication protocols and/or remote management or through APIs for special projects.

FeaturesProduct VersionsCommon uses

Available Versions*:

  • Surface or Flush mount
  • Numeric keyboard or button
  • With IP Color Camera
  • With Card reader
  • With Camera and card reader
  • With 4G/LTE

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct Connection to IP SIP of PBX centrales IP with SIP standard.
  • Up to 5 independent IP-SIP accounts.
  • Improved audio quality, Full Duplex audio, Echo Canceller and Ambient Noise Reduction.
  • Codecs: g.722, g.726, g.729, g.711a/u, GSM and OPUS.
  • Call status audio messages (Door open, call in progress, close door, among others) in Spanish and English
  • Remote administration via web interface.
  • Plate with 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • Door opening/relay activation locally by PIN code dialing (keypad version), RFID (reader version) and QR code (camera version).
  • Programming of relay activation times and periods for PIN numeric codes, RFID and QR
  • Up to 250 users for PIN, RFID or QR.
  • Supports Video Call and Video Streaming with camera version.
  • IP-55 Resistant anti-vandal case for indoor or outdoor for environmental and hygenic conditions.
  • Wiring required, UTP and AC Power in cases of non-POE installation.
  • Winegard ports for other devices (biometrics, readers, etc.)
  • LED ports for indicators.
  • TLS Coding
  • DHCP support
  • RS-485, MODBUS (Scada) protocols support
  • Administration, local and remote configuration via web interface and SMNP, either by Public IP or via VPN
  • Remote audio test (speaker and mic).
  • Traffic Log Management and accesses, exportable to .xls, .csv and .pdf.
  • Option for Additional OPTO card with 4 digital inputs and 1 relay output.
  • Option for 10W Audio-Amplifier Card.
  • Option for Extra RJ45 port.
  • Option for Extra Speaker and Microphone.
  • Option for 2 extra buttons.
  • Option for integration with third party APIs or external DDBB.
  • Option for event notification via SIP call.
  • It works with Centrals (PBX) with Asterisk IP software and power stations such as Alcaltel, Avaya, Cisco, Elastix, Epygi, Denwa, Matrix, Nec, Panasonic, Siemens, Hiper PBX, Xorcom, Yeastar and Zycoo, and others.

*Note: visit ‘ product’s versions’ to check references.

IP-SIP Full-duplex Panphone

Reference

4510

4520

4530

4540

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera No
Card Reader No

IP-SIP Full-duplex Panphone with Proximity Card Reader

Reference

4512

4522

4523

4542

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera No
Card Reader Yes

IP-SIP Full-duplex Panphone with Color Camera

Reference

4511

4521

4531

4541

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera Yes
Card Reader No

IP-SIP Full-duplex Panphone with Card Reader and Camera

Reference

4513

4523

4533

4543

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera Yes
Card Reader Yes

IP-SIP & 4G/LTE Panphone

Reference

45109

45209

45309

45409

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera No
Card Reader No

IP-SIP & 4G/LTE Panphone with Proximity Card Reader

Reference

45129

45229

45239

45429

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera No
Card Reader Yes

IP-SIP & 4G/LTE Panphone with Color Camera

Reference

45119

45219

45319

45419

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera Yes
Card Reader No

IP-SIP & 4G/LTE Panphone with Card Reader and Camera

Reference

45139

45239

45339

45439

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera Yes
Card Reader Yes



  • Centralized access control for multiple sites or doors.
  • For attended or unattended gateways
  • Care and geriatric environments.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • Intercom in prisons
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines
  • Tourist rental
  • Intercoms for operating rooms and hospitals, etc.
  • Public address system
Quote request



IP-SIP Security Panphone

Anti-Vandalic Security IP-SIP intercom with CSIP Card


Anti-vandal Security intercom for IP-SIP standard extension, with quality audio and full duplex communication, high resistance and durability with piezoelectric Call button, for outdoor or indoor use.

It is the Panphone anti-vandal security version, with a completely flat surface without holes, for specific security applications or applications that do not require a camera or card reader in the same device.

It allows automatic dialing to an IP-SIP PBX’s extension by touching the piezoelectric call button.

The IP Security Panphone are fully POE with enhanced audio characteristics like: high-quality audio, full duplex communication, echo canceller, ambient noise reduction, and more.

It allows up to 5 independent SIP accounts and it is possible to select among multiple codecs (g.722, g.726, g.729, g.711a/u, GSM and OPUS that allows bandwidth adjustment).

Available version with additional connection via 4G/LTE that allows backup communication.

It is possible to activate the relay by code dialing from a remote extension or by external devices for which schedules and times can be set.

It also includes the ability to connect to external devices (biometric readers, proximity, etc.) and manage I/O inputs and outputs for LEDs, Indicators and other devices, with the option of adding more digital inputs and extra relay output with OPTO card.

It has additional optional functionalities upon request, 10W audio amplifier card, extra RJ45 port, OPTO card with 4 inputs/outputs and 1 extra relay and the functionality of additional speaker and microphone (Requires OPTO card).

Thanks to its IP-55 casing and its installation versatility, they can be used outdoors and in hygienic environments that require constant cleaning.

It is perfect for security applications among other access applications, for example, exterior doors for buildings or houses, prisons, multiple office locations or doors, garages and hospital environments (see common uses).

Additionally, it facilitates maintenance work since it allows remote management and testing with public IP or through VPN.

They can be integrated with other external platforms through connection to databases, communication protocols and/or remote management or through APIs for special projects.

FeaturesProduct VersionsCommon uses

Available Versions*:

  • Flush mount
  • With 4G/LTE

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Flat surface without holes for flush mounting
  • A piezo-electric call button
  • Direct Connection to IP SIP of PBX centrales IP with SIP standard.
  • Up to 5 independent IP-SIP accounts.
  • Improved audio quality, Full Duplex audio, Echo Canceller and Ambient Noise Reduction.
  • Codecs: g.722, g.726, g.729, g.711a/u, GSM and OPUS.
  • Call status audio messages (Door open, call in progress, close door, among others) in Spanish and English
  • Remote administration via web interface.
  • Plate with 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • Door opening/relay activation locally by PIN code dialing (with external version), RFID (with external reader) and QR code (with external camera).
  • Programming of relay activation times and periods for PIN numeric codes, RFID and QR
  • Up to 250 users for PIN, RFID or QR.
  • Supports Video Call and Video Streaming with camera version.
  • IP-55 Resistant anti-vandal case for indoor or outdoor for environmental and hygenic conditions.
  • Wiring required, UTP and AC Power in cases of non-POE installation.
  • Winegard ports for other devices (biometrics, readers, etc.)
  • LED ports for indicators.
  • TLS Coding
  • DHCP support
  • RS-485, MODBUS (Scada) protocols support
  • Administration, local and remote configuration via web interface and SMNP, either by Public IP or via VPN
  • Remote audio test (speaker and mic).
  • Traffic Log Management and accesses, exportable to .xls, .csv and .pdf.
  • Option for Additional OPTO card with 4 digital inputs and 1 relay output.
  • Option for 10W Audio-Amplifier Card.
  • Option for Extra RJ45 port.
  • Option for Extra Speaker and Microphone.
  • Option for 2 extra buttons.
  • Option for integration with third party APIs or external DDBB.
  • Option for event notification via SIP call.
  • It works with Centrals (PBX) with Asterisk IP software and power stations such as Alcaltel, Avaya, Cisco, Elastix, Epygi, Denwa, Matrix, Nec, Panasonic, Siemens, Hiper PBX, Xorcom, Yeastar and Zycoo, and others.

*Note: visit ‘ product’s versions’ to check references.

IP-SIP Security Panphone

Reference

5530

Format Flush Mount
Button or piezo-electric Keyboard 1 button
Dimensions (HxWxD) mm External 217,41×128,8×8,6
Interior 180×91,40×30
Camera No
Card Reader No



IP-SIP & 4G/LTE Security Panphone

Reference

55309

Format Flush Mount
Button or piezo-electric Keyboard 1 button
Dimensions (HxWxD) mm External 217,41×128,8×8,6
Interior 180×91,40×30
Camera No
Card Reader No



  • Penitentiary Centers.
  • Centralized access control for multiple sites or doors.
  • Unattended gatehouses or guardhouses.
  • Hospital environment, accesses, operating
    rooms, etc.
  • Assistance zones in buildings and hotels.
  • Parking barriers and Tollgates.
  • Evelators
  • Roadside Emergency Callers (SOS points)
  • Public transportation stations
  • Gas stations, unattended service stations
  • HealthCare and geriatric environments.
  • Accessibility systems for reduced mobility people.
  • Vending machines
  • Public address system
Quote request



CSIP Card & CSIP 4G/LTE Card

CSIP & CSIP 4G/LTE Card


Intercom Card for standard IP-SIP extension, with quality audio and full duplex communication

It allows automatic dialing to an IP-SIP PBX’s extension by touching the external keyboard or call button.

The CSIP and CSIP 4G/LTE Cards are fully POE with enhanced audio characteristics like: high- quality audio, full duplex communication, echo canceller, ambient noise reduction, and more.

It allows up to 5 independent SIP accounts and it is possible to select among multiple codecs (g.722, g.726, g.729, g.711a/u, GSM and OPUS that allows bandwidth adjustment).

Available version with additional connection via 4G/LTE that allows backup communication.

It has activation relays (door opening) for remote use or in the same device with a dial PIN code (external keypad), proximity card (external card reader) or QR code (external camera), for which schedules and time can be set.

It has specific pin connectors for external devices such as keyboard, pushbutton, loudspeaker and proximity card reader.

Allows the connection of an IP camera to be used in IP video calls or for connection to centralized or remote video surveillance systems.

It also includes the ability to connect to external devices (biometric readers, proximity, etc.) and manage I/O inputs and outputs for LEDs, indicators and other devices.

It is possible to attach it an optional OPTO Card that includes additionally 4 digital inputs and 1 relay output.

It has additional optional functionalities upon request, 10W audio amplifier card, extra RJ45 port, OPTO card with 4 inputs/outputs and 1 extra relay and the functionality of additional speaker and microphone (Requires OPTO card).

Additionally, it facilitates maintenance work since it allows remote management and testing with public IP or through VPN.
They can be integrated with other external platforms through connection to databases, communication protocols and/or remote management or through APIs for special projects.

Any customization is possible, since the integrated PCB card allows installation in any preferred device, box, or structure, allowing its use in multiple applications and projects. It can be a component within a set of more complex systems.
It can be used to develop products or manufacture solutions using the branding of the integrator.

FeaturesProduct VersionsCommon uses

Available Versions*:

  • IP-SIP
  • IP-SIP & 4G/LTE

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct Connection to IP SIP standard PBX
  • Up to 5 independent IP-SIP accounts.
  • Improved audio quality, Full Duplex audio, Echo Canceller and Ambient Noise Reduction.
  • Codecs: g.722, g.726, g.729, g.711a/u, GSM and OPUS.
  • Call status audio messages (Door open, call in progress, close door, among others) in Spanish and English.
  • Remote administration via web interface.
  • Plate with 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • Door opening/relay activation locally by PIN code dialing (external keypad), RFID (external card reader) and QR code (external camera).
  • Programming of relay activation times and periods for PIN numeric codes, RFID and QR
  • Up to 250 users for PIN, RFID or QR.
  • Supports Video Call and Video Streaming with external camera.
  • PCB Card Format for any Case, device or structure.
  • Illuminated indication (LED) in call status.
  • Specific connectors for push button, Keyboard, Proximity Card reader and IP Camera.
  • Wiring required, UTP and AC Power in cases of non-POE installation.
  • Winegard ports for other devices (biometrics, readers, etc.)
  • LED ports for indicators.
  • TLS Coding
  • DHCP support
  • RS-485, MODBUS (Scada) protocols support
  • Administration, local and remote configuration via web interface and SMNP, either by Public IP or via VPN
  • Remote audio test (speaker and mic).
  • Traffic Log Management and accesses, exportable to .xls, .csv and .pdf.
  • Option for Additional OPTO card with 4 digital inputs and 1 relay output.
  • Option for 10W Audio-Amplifier Card.
  • Option for Extra RJ45 port.
  • Option for Extra Speaker and Microphone.
  • Option for 2 extra buttons.
  • Option for integration with third party APIs or external DDBB.
  • Option for event notification via SIP call.
  • It works with Centrals (PBX) with Asterisk IP software and power stations such as Alcaltel, Avaya, Cisco, Elastix, Epygi, Denwa, Matrix, Nec, Panasonic, Siemens, Hiper PBX, Xorcom, Yeastar and Zycoo, and others.

*Note: visit ‘ product’s versions’ to check references.

CSIP Card

Reference

CSIP

Communication Protocol IP
Mobile Network Communication No
Frequency Bands LTE-TDD,LTE-FDD, UMTS/HSPA+, GSM/GPRS/EDGE 850/900/1800/1900MHz No
Dimensions (HxWxD) mm 119x85x16,9 mm

CSIP 4G/LTE Card

Reference

CSIP 4G/LTE

Communication Protocol IP and/or 4G/LTE
Comunicación por Red móvil Yes, 2G/3G/4G
Frequency Bands LTE-TDD,LTE-FDD, UMTS/HSPA+, GSM/GPRS/EDGE 850/900/1800/1900MHz Yes
Dimensions (HxWxD) mm 119x 85x 18,5 mm



  • Centralized access control for multiple sites or doors.
  • Unattended gatehouses or guardhouses.
  • Healthcare and geriatric environments.
  • Assistance zones in buildings and hotels.
  • Parking barriers and Tollgates.
  • Elevators and Kiosks
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Non attended Fuel stations, self-service.
  • Accessibility systems for reduced mobility people.
  • Intercom in prisons
  • Vending machines
  • Tourist rental
  • Intercoms for operating rooms and hospitals, etc.
  • Public address system
Quote request

Go to top

WIFI Panphones


WIFI Full-duplex Panphone Series C

Anti-Vandalic WIFI intercom with CSIP Card


Anti-vandalism WIFI intercom for IP-SIP standard extension, with quality audio and full duplex communication, high resistance and durability with mechanical pushbutton and surface installation, for outdoor or indoor use.

With the same functionalities of the Panphone IP-SIP Series C Full duplex, adding WIFI functionality to facilitate installation in places that are difficult to access with conventional wiring. It is equipped for a surface installation, it has a treated aluminum box, resistant baked paint, hermetic seal, security screws and mechanical push buttons.

It allows automatic dialing to (PBX) IP-SIP extension standard through a mechanical press button.

It has enhanced audio features like full duplex audio communication, echo canceller, ambient noise reduction, and more. It allows up to 5 independent SIP accounts and it is possible to select among multiple codecs (g.722, g.726, g.729, g.711a/u, GSM and OPUS that allows bandwidth adjustment).

It is available a version with Color Camera that allows video calls and versions with Card Reader to facilitate access where is required.

It has activation relays (door opening) for remote use with a dial PIN code or in the same device with proximity card or QR code (camera version), for which schedules and time can be set.

It also includes the ability to connect to external devices (biometric readers, proximity, etc.) and manage I/O inputs and outputs for LEDs, Indicators and other devices, with the option of adding more digital inputs and extra relay output with OPTO card.

It has additional optional functionalities upon request, 10W audio amplifier card, extra RJ45 port, OPTO card with 4 inputs/outputs and 1 extra relay and the functionality of additional speaker and microphone (Requires OPTO card).

Its physical characteristics offer high resistance and durability, allowing its use in outdoor or indoor climatic events at any point with Wi-Fi network coverage. Its approximate wireless range is 100 meters in open spaces and 50 in closed spaces. It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments among others (see common uses).

Additionally, it facilitates maintenance work since it allows remote management and testing with public IP or through VPN.

They can be integrated with other external platforms through connection to databases, communication protocols and/or remote management or through APIs for special projects.

Available similar versions of the product in different colors (Red and Yellow). Please go to Emergency SOS Panphone section.

FeaturesProduct VersionsCommon uses

Versions*:

  • Surface, 1 Button
  • With IP color camera
  • With Proximity Card Reader
  • With IP color camera & Proximity Card Reader

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct Connection to IP SIP of PBX centrales IP with SIP standard vía WIFI
  • Up to 5 independent IP-SIP accounts.
  • Improved audio quality, Full Duplex audio, Echo Canceller and Ambient Noise Reduction.
  • Codecs: g.722, g.726, g.729, g.711a/u, GSM and OPUS.
  • WIFI IEE 802.11 b,g,n, at 2,4 GHz/300Mbps
  • Call status audio messages (Door open, call in progress, close door, among others) in Spanish and English
  • Remote administration via web interface.
  • Plate with 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • Door opening/relay activation locally by RFID (reader version) and QR code (camera version).
  • Programming of relay activation times and periods for PIN numeric codes, RFID and QR
  • Up to 250 users for PIN, RFID or QR.
  • Supports Video Call and Video Streaming with camera version.
  • Resistant anti-vandal case for indoor or outdoor for environmental conditions.
  • Illuminated indication (LED) in call status.
  • Extra IP port for connection of other devices.
  • Wiring required, UTP and AC Power in cases of non-POE installation.
  • Winegard ports for other devices (biometrics, readers, etc.)
  • LED ports for indicators.
  • TLS Coding
  • DHCP support
  • RS-485, MODBUS (Scada) protocols support
  • Administration, local and remote configuration via web interface and SMNP, either by Public IP or via VPN
  • Remote audio test (speaker and mic).
  • Traffic Log Management and accesses, exportable to .xls, .csv and .pdf.
  • Option for Additional OPTO card with 4 digital inputs and 1 relay output.
  • Option for 10W Audio-Amplifier Card.
  • Option for Extra RJ45 port.
  • Option for Extra Speaker and Microphone.
  • Option for 2 extra buttons.
  • Option for integration with third party APIs or external DDBB.
  • Option for event notification via SIP call.
  • It works with Centrals (PBX) with Asterisk IP software and power stations such as Alcaltel, Avaya, Cisco, Elastix, Epygi, Denwa, Matrix, Nec, Panasonic, Siemens, Hiper PBX, Xorcom, Yeastar and Zycoo, and others.

*Note: visit ‘ product’s versions’ to check references.

WIFI Full-duplex Panphone Series C

Reference

C514

Color Matt Grey RAL 9006
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera No
Card Reader No

WIFI Full-duplex Panphone Series C with Proximity Card Reader

Reference

C515

Color Matt Grey RAL 9006
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera No
Card Reader Yes



WIFI Full-duplex Panphone Series C with Color Camera

Reference

C516

Color Matt Grey RAL 9006
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera Yes
Card Reader No



WIFI Full-duplex Panphone Series C with Color Camera and Proximity Card Reader

Reference

C517

Color Matt Grey RAL 9006
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera Yes
Card Reader Yes
  • Centralized access control for multiple sites or doors.
  • For attended or unattended gateways
  • Care and geriatric environments.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • Intercom in prisons
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines
  • Tourist rental
  • Intercoms for operating rooms and hospitals, etc.
  • Public address system


Quote request


Emergency-SOS WIFI Full-duplex Panphone

Anti-Vandalic WIFI intercom for Emergencies with CSIP Card


Anti-vandalism WIFI intercom for IP-SIP extension standard, with quality audio and full duplex communication, high resistance and durability with mechanical pushbutton and surface installation, for outdoor or indoor use, for information and emergency uses.

With the same functionalities of the Panphone IP-SIP Series C Full duplex, adding WIFI functionality to facilitate installation in places that are difficult to access with conventional wiring. They are equipment for a surface installation, it has a treated aluminum box, resistant baked paint, hermetic seal, security screws and mechanical push buttons.

It allows automatic dialing to (PBX) IP-SIP extension standard through a mechanical press button.

Versions of Emergency-SOS WIFI Full-duplex Panphone are available in different colors for different applications, services or intercom projects: Yellow (Information) and Red (Emergency or SOS).

The Emergency-SOS IP Full-duplex Panphone are fully POE with enhanced audio characteristics like: high-quality audio, full duplex communication, echo canceller, ambient noise reduction, and more.

It has enhanced audio features like full duplex audio communication, echo canceller, ambient noise reduction, and more. It allows up to 5 independent SIP accounts and it is possible to select among multiple codecs (g.722, g.726, g.729, g.711a/u, GSM and OPUS that allows bandwidth adjustment).

It is available a version with Color Camera that allows videocalls. It also includes the ability to connect to external devices (biometric readers, proximity, etc.) and manage I/O inputs and outputs for LEDs, Indicators and other devices, with the option of adding more digital inputs and extra relay output with OPTO card.

It has additional optional functionalities upon request, 10W audio amplifier card, extra RJ45 port, OPTO card with 4 inputs/outputs and 1 extra relay and the functionality of additional speaker and microphone (Requires OPTO card).

The Emergency-SOS version is available to comply with the CTE SUA9 / SI 3-7 building standard.

Its physical characteristics offer high resistance and durability, allowing its use in outdoor or indoor climatic events at any point with Wi-Fi network coverage. Its approximate wireless range is 100 meters in open spaces and 50 in closed spaces. It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments among others (see common uses).

Additionally, it facilitates maintenance work since it allows remote management and testing with public IP or through VPN.

They can be integrated with other external platforms through connection to databases, communication protocols and/or remote management or through APIs for special projects.

FeaturesProduct VersionsCommon uses

Versions*:

  • Surface, 1 Button
  • With IP color camera
  • Yellow and Red

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct Connection to IP SIP of PBX centrales IP with SIP standard via WIFI
  • Up to 5 independent IP-SIP accounts.
  • Improved audio quality, Full Duplex audio, Echo Canceller and Ambient Noise Reduction.
  • Codecs: g.722, g.726, g.729, g.711a/u, GSM and OPUS.
  • WIFI IEE 802.11 b,g,n, at 2,4 GHz/300Mbps
  • Braille Label.
  • Call status audio messages (Door open, call in progress, close door, among others) in Spanish and English
  • Remote administration via web interface.
  • Plate with 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • Door opening/relay activation locally by QR code (camera version).
  • Programming of relay activation times and periods for PIN numeric codes, RFID and QR
  • Up to 250 users for PIN, RFID or QR.
  • Supports Video Call and Video Streaming with camera version.
  • Resistant anti-vandal case for indoor or outdoor for environmental conditions.
  • Illuminated indication (LED) in call status.
  • Extra IP port for connection of other devices.
  • Wiring required, UTP and AC Power in cases of non-POE installation.
  • Winegard ports for other devices (biometrics, readers, etc.)
  • LED ports for indicators.
  • TLS Coding
  • DHCP support
  • RS-485, MODBUS (Scada) protocols support
  • Administration, local and remote configuration via web interface and SMNP, either by Public IP or via VPN
  • Remote audio test (speaker and mic).
  • Traffic Log Management and accesses, exportable to .xls, .csv and .pdf.
  • Option for Additional OPTO card with 4 digital inputs and 1 relay output.
  • Option for 10W Audio-Amplifier Card.
  • Option for Extra RJ45 port.
  • Option for Extra Speaker and Microphone.
  • Option for 2 extra buttons.
  • Option for integration with third party APIs or external DDBB.
  • Option for event notification via SIP call.
  • It works with Centrals (PBX) with Asterisk IP software and power stations such as Alcaltel, Avaya, Cisco, Elastix, Epygi, Denwa, Matrix, Nec, Panasonic, Siemens, Hiper PBX, Xorcom, Yeastar and Zycoo, and others.

*Note: visit ‘ product’s versions’ to check references.

Emergency-SOS IP-SIP Full-duplex Panphone IP-SIP

Referencia

C514-E-A

C514-E-R

Color Yellow RAL 1023* Red RAL 3020*
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera No
Accessibility Braille and light indication (Led) for call status
Comply with CTE SUA9/SI 3-7 Yes

Emergency-SOS IP-SIP Full-duplex Panphone, with Color Camera

Reference

C516-E-A

C516-E-R

Color Yellow RAL 1023* Red RAL 3020*
Format Surface
Button or Numeric Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera Yes
Accessibility Braille and light indication (Led) for call status
Comply with CTE SUA9/SI 3-7 Yes



  • Centralized access control for multiple sites or doors.
  • For attended or unattended gateways
  • Remote sites and of difficult access.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For parking space
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines

Quote request


WIFI Full-Duplex Panphone Series 4

Anti-Vandalic WIFI intercom with CSIP Card


Anti-vandalism WIFI intercom for IP-SIP standard extension, with quality audio and full duplex communication, high resistance and durability with piezoelectric switches, for outdoor or indoor use.

With the same functionalities of the IP-SIP Series 4 Full-duplex Panphone, adding WIFI functionality to facilitate installation in places that are difficult to access with conventional wiring. They are equipment for surface or flush mount installation.

It allows automatic dialing to an IP-SIP PBX’s extension by touching the call button or dialing on the keyboard.

It has enhanced audio features like full duplex audio communication, echo canceller, ambient noise reduction, and more. It allows up to 5 independent SIP accounts and it is possible to select among multiple codecs (g.722, g.726, g.729, g.711a/u, GSM and OPUS that allows bandwidth adjustment).

Now available IP Panphone versions with Color Camera that allows video calls and versions with Card Reader to facilitate access where is required.

It has activation relays (door opening) for remote use or in the same device with a dial PIN code (keypad version), proximity card or QR code (camera version), for which schedules and time can be set.

It also includes the ability to connect to external devices (biometric readers, proximity, etc.) and manage I/O inputs and outputs for LEDs, Indicators and other devices, with the option of adding more digital inputs and extra relay output with OPTO card.

It has additional optional functionalities upon request, 10W audio amplifier card, extra RJ45 port, OPTO card with 4 inputs/outputs and 1 extra relay and the functionality of additional speaker and microphone (Requires OPTO card).

Its installation versatility and IP-55 casing allow it to be used outdoors and in hygienic environments due to its ease of cleaning at any point with Wi-Fi network coverage. Its approximate wireless range is 100 meters in open spaces and 50 in closed spaces. It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments and other types of building (see common uses).

Additionally, it facilitates maintenance work since it allows remote management and testing with public IP or through VPN.

They can be integrated with other external platforms through connection to databases, communication protocols and/or remote management or through APIs for special projects.

FeaturesProduct VersionsCommon uses

Versions*:

  • Surface or Flush mount
  • Numeric keyboard or button
  • With IP Color Camera
  • With Card reader
  • With Camera and card reader

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct Connection to IP SIP of PBX centrales IP with SIP standard via WIFI.
  • Up to 5 independent IP-SIP accounts.
  • Improved audio quality, Full Duplex audio, Echo Canceller and Ambient Noise Reduction.
  • Codecs: g.722, g.726, g.729, g.711a/u, GSM and OPUS.
  • WIFI IEE 802.11 b,g,n, at 2,4 GHz/300Mbps
  • Call status audio messages (Door open, call in progress, close door, among others) in Spanish and English
  • Remote administration via web interface.
  • Plate with 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • Door opening/relay activation locally by PIN code dialing (keypad version), RFID (reader version) and QR code (camera version).
  • Programming of relay activation times and periods for PIN numeric codes, RFID and QR
  • Up to 250 users for PIN, RFID or QR.
  • Supports Video Call and Video Streaming with camera version.
  • IP-55 Resistant anti-vandal case for indoor or outdoor for environmental and hygenic conditions.
  • Wiring required, UTP and AC Power in cases of non-POE installation.
  • Winegard ports for other devices (biometrics, readers, etc.)
  • LED ports for indicators.
  • TLS Coding
  • DHCP support
  • RS-485, MODBUS (Scada) protocols support
  • Administration, local and remote configuration via web interface and SMNP, either by Public IP or via VPN
  • Remote audio test (speaker and mic).
  • Traffic Log Management and accesses, exportable to .xls, .csv and .pdf.
  • Option for Additional OPTO card with 4 digital inputs and 1 relay output.
  • Option for 10W Audio-Amplifier Card.
  • Option for Extra RJ45 port.
  • Option for Extra Speaker and Microphone.
  • Option for 2 extra buttons.
  • Option for integration with third party APIs or external DDBB.
  • Option for event notification via SIP call.
  • It works with Centrals (PBX) with Asterisk IP software and power stations such as Alcaltel, Avaya, Cisco, Elastix, Epygi, Denwa, Matrix, Nec, Panasonic, Siemens, Hiper PBX, Xorcom, Yeastar and Zycoo, and others.

*Note: visit ‘ product’s versions’ to check references.

WIFI Full-duplex Series 4 Panphone

Reference

4514

4524

4534

4544

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera No
Card Reader No

WIFI Full-duplex Series 4 Panphone with Proximity Card Reader

Reference

4515

4525

4535

4545

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera No
Card Reader Yes

WIFI Full-duplex Series 4 Panphone with Color Camera

Reference

4516

4526

4536

4546

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera Yes
Card Reader No

WIFI Full-duplex Series 4 Panphone with Card Reader and Camera

Reference

4517

4527

4537

4547

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera Yes
Card Reader Yes
  • Centralized access control for multiple sites or doors.
  • For attended or unattended gateways
  • Care and geriatric environments.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • Intercom in prisons
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines
  • Tourist rental
  • Intercoms for operating rooms and hospitals, etc.
  • Public address system

Quote request


WIFI Security Panphone

Anti-Vandalic Security WIFI intercom with CSIP Card


Anti-vandal and Security WIFI intercom for IP-SIP standard extension, with quality audio and full duplex communication, high resistance and durability with piezoelectric Call button, for outdoor or indoor use.

It is the Panphone anti-vandal security version, with a completely flat surface without holes, for specific security applications or applications that do not require a camera or card reader in the same device. With WIFI functionality to facilitate installation in places that are difficult to access with conventional wiring.

It allows automatic dialing to an IP-SIP PBX’s extension by touching the piezoelectric call button.

It has enhanced audio features like full duplex audio communication, echo canceller, ambient noise reduction, and more. It allows up to 5 independent SIP accounts and it is possible to select among multiple codecs (g.722, g.726, g.711, GSM and OPUS that allows bandwidth adjustment).

Available version with additional connection via 4G/LTE that allows backup communication.

It also includes the ability to connect to external devices (biometric readers, proximity, etc.) and manage I/O inputs and outputs for LEDs, Indicators and other devices, with the option of adding more digital inputs and extra relay output with OPTO card.

It has additional optional functionalities upon request, 10W audio amplifier card, extra RJ45 port, OPTO card with 4 inputs/outputs and 1 extra relay and the functionality of additional speaker and microphone (Requires OPTO card).

Thanks to its IP-55 casing and its installation versatility, they can be used outdoors and in hygienic environments that require constant cleaning at any point with Wi-Fi network coverage. Its approximate wireless range is 100 meters in open spaces and 50 in closed spaces.

It is perfect for security applications among other access applications, for example, exterior doors for buildings or houses, prisons, multiple office locations or doors, garages and hospital environments (see common uses).

Additionally, it allows remote management and testing facilitating maintenance work.

It is possible its integration with other platforms through APIs as an option, ideal for special projects.

FeaturesProduct VersionsCommon uses

Available Versions*:

  • Flush mounting
  • With 4G/LTE

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Flat surface without holes for flush mounting
  • A piezo-electric call button
  • Direct Connection to IP SIP of PBX centrales IP with SIP standard via WIFI.
  • Up to 5 independent IP-SIP accounts.
  • Improved audio quality, Full Duplex audio, Echo Canceller and Ambient Noise Reduction.
  • Codecs: OPUS; g722, g726, g711 and GSM.
  • WIFI IEE 802.11 b,g,n, at 2,4 GHz/300Mbps
  • Call status audio messages (Door open, call in progress, close door, among others)
  • Remote administration via web interface.
  • Plate with 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • IP-55 Resistant anti-vandal case for indoor or outdoor for environmental and hygenic conditions.
  • Approximate wireless range of 100 meters in open spaces and 50 in closed spaces.
  • Power only wiring.
  • Winegard ports for other devices (biometrics, readers, etc.)
  • LED ports for indicators.
  • Remote audio test (speaker and mic)
  • Call traffic logs.
  • Option for Additional OPTO card with 4 digital inputs and 1 relay output.
  • Option for 10W Audio-Amplifier Card.
  • Option for Extra RJ45 port.
  • Option for Extra Speaker and Microphone.
  • Option for 2 extra buttons.
  • Option for integration with third party APIs.
  • Option for event notification via SIP call.
  • It works with Centrals (PBX) with Asterisk IP software and power stations such as Alcaltel, Avaya, Cisco, Elastix, Epygi, Denwa, Matrix, Nec, Panasonic, Siemens, Hiper PBX, Xorcom, Yeastar and Zycoo, and others.

*Note: visit ‘ product’s versions’ to check references.

WIFI Security Panphone

Reference

5534

Format Flush Mount
Button or piezo-electric Keyboard 1 button
Dimensions (HxWxD) mm External 217,41×128,8×8,6
Interior 180×91,40×30
Camera No
Card Reader No

WIFI & 4G/LTE Security Panphone

Reference

55349

Format Flush Mount
Button or piezo-electric Keyboard 1 button
Dimensions (HxWxD) mm External 217,41×128,8×8,6
Interior 180×91,40×30
Camera No
Card Reader No



  • Penitentiary Centers.
  • Centralized access control for multiple sites or doors.
  • Unattended gatehouses or guardhouses.
  • Hospital environment, accesses, operating
    rooms, etc.
  • Assistance zones in buildings and hotels.
  • Parking barriers and Tollgates.
  • Evelators
  • Roadside Emergency Callers (SOS points)
  • Public transportation stations
  • Gas stations, unattended service stations
  • HealthCare and geriatric environments.
  • Accessibility systems for reduced mobility people.
  • Vending machines
  • Public address system

Quote request

Go Up

Analog Panphone

Analog Panphone Series C



Antivandalic Analog Intercom


Anti-vandalism intercom for standard Analog extension, high resistance and durability with mechanical pushbutton and surface installation, for outdoor or indoor use.

It is equipped for a surface installation, it has a treated aluminum box, resistant baked paint, hermetic seal, security screws and mechanical push buttons. It allows automatic dialing to standard PBX extension through a mechanical press button and can be used as an intercom and as an access control.

In addition, it is available another version with Camera with different colour, that allows videocalls.

It has 2 dry contact relays that work independently, for electric door’s connection, which can be activated from remote extension or in the same keyboard. It can also be activated from external devices (such as card readers, biometric, proximity, etc.), since it has digital inputs to which buttons and sensors can also be connected.
The version for a specific area is available to comply with the construction standard CTE SUA9 / SI 3-7.

Available similar versions of the product in different colors (Red and Yellow). Please go to Emergency SOS Panphone section.

FeaturesProduct VersionsCommon uses

Available Versions*:

  • Surface
  • 1 Button
  • With IP color camera

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct Connection to analog of PBX EXT standard
  • With 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • Resistant anti-vandal case format, for indoor or outdoor for environmental conditions.
  • Illuminated indication (LED) in call status.
  • Wiring, needs 2 wires and AC power, in case a version with camera, so add 1 UTP
  • It works with all PBX that has a conventional analog EXT.

*Note: visit ‘ product’s versions’ to check references.

Analog Panphone Series C without Camera

Reference

C006

Color Matt Grey RAL 9006
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera No

Analog Panphone Series C with Camera

Reference

C008

Color Matt Grey RAL 9006
Format Surface
Button or Keyboard 1 button
Dimensions (HxWxD) mm 188×115,9×40
Color Camera Yes
  • Centralized access control for different sites or doors.
  • For attended or unattended gateways
  • Care and geriatric environments.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • Intercom in prisons
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines
  • Intercoms for operating rooms and hospitals, etc.
  • Public address system
Quote request


Emergency-SOS Analog Panphone

Antivandalic Analog Intercom for Emergencies


Anti-vandalism intercom for standard Analog extension, high resistance and durability with mechanical pushbutton and surface installation, for outdoor or indoor use.

It is equipped for a surface installation, it has a treated aluminum box, resistant baked paint, hermetic seal, security screws and mechanical push buttons. It allows automatic dialing to standard PBX extension through a mechanical press button and can be used as an intercom and as an access control.

Versions of Panphone Emergency SOS are available in different colors for different applications, services or intercom projects: Yellow (Information) and Red (Emergency or SOS).

In addition, it is available another version with Camera with different colour, that allows videocalls.

It has 2 dry contact relays that work independently, for electric door’s connection, which can be activated from remote extension or in the same keyboard. It can also be activated from external devices (such as card readers, biometric, proximity, etc.), since it has digital inputs to which buttons and sensors can also be connected.

The version for a specific area is available to comply with the construction standard CTE SUA9 / SI 3-7.

Its physical characteristics also offer high strength and durability, allowing to be used outdoors to face the climet changes. It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments among others (see common uses).

FeaturesProduct VersionsCommon uses

Available Versions*:

  • Surface
  • 1 Button
  • With IP color camera
  • Yellow and Red

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct Connection to analog of PBX EXT standard
  • With 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • Resistant anti-vandal case format, for indoor or outdoor for environmental conditions.
  • Illuminated indication (LED) in call status.
  • Wiring, needs 2 wires and AC power, in case a version with camera, so add 1 UTP
  • It works with all PBX that has a conventional analog EXT.

*Note: visit ‘ product’s versions’ to check references.

Emergency-SOS Analog Panphone without Camera

Reference

C006-A-E

C006-R-E

Color Yellow RAL 1023* Red RAL 3020*
Format Surface
Button or Keyboard 1 button
Dimensiones (HxWxD) mm 188×115,9×40
Color Camera No
Accessibility Braille and light indication (Led) for call status
Comply with CTE SUA9/SI 3-7 Yes

Emergency-SOS Analog Panphone with Camera

Reference

C008-A-E

C008-R-E

Color Yellow RAL 1023* Red RAL 3020*
Formato Surface
Button or Keyboard 1 button
Dimensiones (HxWxD) mm 188×115,9×40
Color Camera Yes
Accessibility Braille and light indication (Led) for call status
Comply with CTE SUA9/SI 3-7 Yes



  • Centralized access control for different sites or doors.
  • For attended or unattended gateways
  • Care and geriatric environments.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • Intercom in prisons
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines
  • Intercoms for operating rooms and hospitals, etc.
  • Public address system
Quote request


Analog Panphone Series 4

Anti-Vandalic Analog intercom


Anti-vandalism intercom for standard Analog extension, high resistance and durability with piezoelectric switches, for outdoor or indoor use.



It allows automatic dialing to PBX extension standard through a mechanical press button or the keyboard and can be used as an intercom and as an access control with a dialing code in case of keyboard type.

It is available Analog Panphone series 4 type with keyboards and with press button and if it has IP color camera or not.

It has 2 dry contact relays that work independently, for electric door’s connection, which can be activated from remote extension or in the same keyboard. It can also be activated from external devices (such as card readers, biometric, proximity, etc.), since it has digital inputs to which buttons and sensors can also be connected.

It has a IP-55 casing and its installation versatility, they can be used outdoors and in hygienic environments that require constant cleaning. It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments and other types of building (see common uses).

FeaturesProduct VersionsCommon uses

Available Versions*:

  • Surface or Flush Mount
  • Numeric keyboard or button
  • With IP color camera

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct Connection to analog of PBX EXT standard
  • With 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • Anti-vandalism IP-55, for indoor or outdoor for hygienic environments or environmental conditions.
  • Keyboard type allowed open doors with code.
  • Wiring, needs 2 wires and AC power, in case a version with camera, so add 1 UTP
  • It works with all PBX that has a conventional analog EXT.

*Note: visit ‘ product’s versions’ to check references.

Analog Panphone Series 4 without Camera

Reference

4006

4003

4018

4015

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera No

Analog Panphone Series 4 with Camera

Reference

4008

4005

4020

4017

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera Yes
  • Centralized access control for different sites or doors.
  • For attended or unattended gateways
  • Care and geriatric environments.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • Intercom in prisons
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines
  • Intercoms for operating rooms and hospitals, etc.
  • Public address system
Quote request


Analog Security Panphone

Anti-Vandalic Analog Security intercom


Anti-vandal Security intercom for standard Analog extension, high resistance and durability with piezoelectric with piezoelectric Call button, for outdoor or indoor use.

It is the Panphone anti-vandal security version, with a completely flat surface without holes, for specific security applications or applications that do not require a camera or card reader in the same device.

It allows automatic dialing to PBX standard extension by touching the piezoelectric call button.

It has 2 dry contact relays that work independently, for electric door’s connection, which can be activated from remote extension. It can also be activated from external devices (such as card readers, biometric, proximity, etc.), since it has digital inputs to which buttons and sensors can also be connected.

Thanks to its IP-55 casing and its installation versatility, they can be used outdoors and in hygienic environments that require constant cleaning.

It is perfect for security applications among other access applications, for example, exterior doors for buildings or houses, prisons, multiple office locations or doors, garages and hospital environments (see common uses).

FeaturesProduct VersionsCommon uses

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Flat surface without holes for flush mounting
  • A piezo-electric call button
  • Direct Connection to analog of PBX EXT standard
  • With 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • Anti-vandalism IP-55, for indoor or outdoor for hygienic environments or environmental conditions.
  • Wiring, needs 2 wires and AC power, in case a version with camera, so add 1 UTP
  • It works with all PBX that has a conventional analog EXT.

*Note: visit ‘ product’s versions’ to check references.

Analog Security Panphone

Reference

5030

Format Flush Mount
Button or piezo-electric Keyboard 1 button
Dimensions (HxWxD) mm External 217,41×128,8×8,6
Interior 180×91,40×30
Camera No
Card Reader No
  • Centralized access control for different sites or doors.
  • For attended or unattended gateways
  • Care and geriatric environments.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • Intercom in prisons
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines
  • Intercoms for operating rooms and hospitals, etc.
  • Public address system

Quote request

Go to top

GSM Intecoms

GSM 4G/LTE Panphone Series C

Anti-Vandalic GSM 4G/LTE intercom


Anti-vandalism intercom for Mobile Cellular line (GSM, WCDMA or 4G/LTE), high strength and durability with mechanical pushbutton and surface installation, for outdoor or indoor use.

It is equipped for a surface installation, it has a treated aluminum box, resistant baked paint, hermetic seal, security screws and mechanical push buttons.

It is ideal for establishments where wiring is not possible or required (voice or data), allowing greater versatility and fast in installation. Dialing automatic to a phone number by pressing the button through the cellular mobile network. It can be used as an intercom and as a remote access control.

It allows dialing up to 10 pre-configured numbers that are dialed sequentially in case there is an error in the call or no answer.

It has 2 dry contact relays that operate independently, for connection of electric doors, which can be activated from remote telephone (with code, SMS or missed call). They can also be activated from external devices (such as card readers, biometric, proximity, etc.), since it has digital inputs to which buttons and sensors can also be connected. It can generate alarms by calling a telephone number with the activation of some sensor input.

The version of the specific area is available and it is comply with the construction standard CTE SUA9 / SI 3-7.

Now GSM 4G/LTE intercoms can have pre-recorded messages that indicate the status or activity. These messages can be in several languages, Spanish (Spanish), English, Portuguese and Catalan, are available, other languages ​​upon request.

Its physical characteristics also offer high strength and durability, allowing to be used outdoors to face the climet changes. It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments and so on (see common uses).

Available similar versions of the product in different colors (Red and Yellow). Please go to Emergency SOS Panphone section.

FeaturesProduct VersionsCommon uses

Available Versions*:

  • Surface
  • 1 Button

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct connection via telephone by Cellular Mobile Line (GSM, WCDMA or 4G/LTE).
  • Sequence dialing to 10 programmed numbers.
  • Illuminated indication (LED) in call status.
  • With 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any telephone or by making a call or SMS
  • Resistant anti-vandal case format, for indoor or outdoor for environmental conditions.
  • Contact input (sensors, alarms, etc.) to make a call.
  • Wiring, AC power
  • It works with the most common mobile cellular networks (GSM, WCDMA or 4G/LTE), which allows its use in coverage areas of different networks.

*Note: Note, visit ‘ product’s versions’ to check references.

GSM 4G/LTE Panphone Series C

Reference

C410

Color Matt Grey RAL 9006
Format Surface
Button or Keyboard 1 button
Communication Protocols GSM, WCDMA, LTE-TDD y LTE-FDD
Comunicación por Red móvil Yes
Frequency Bands GSM (Mhz) B8 (900) y B3 (1800)
Frequency Bands WCDMA 3G (Mhz) B1 (2100), B8 (900) y B5 (850)
Frequency Bands 4G/LTE cat 4 (Mhz) B1 (FDD 2100), B3 (FDD 1800); B5 (FDD 850), B7 (FDD 2600); B8 (FDD 900), B20 (FDD 800DD), B38 (TDD 2600), B40 (TDD 2300) y B41 (TDD 2500)
Dimensions (HxWxD) mm 188×115,9×40
Color Camera No

*Note: Available for projects with minimum quantities. Please check minimum orders with your commercial.

  • Centralized access control for different sites or doors.
  • For attended or unattended gateways
  • Remote sites and of difficult access.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For parking space
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines

Quote request


Emergency-SOS GSM 4G/LTE Panphone

Anti-Vandalic GSM 4G/LTE intercom for Emergencies


Anti-vandalism intercom for Mobile Cellular line (GSM, WCDMA or 4G/LTE), high strength and durability with mechanical pushbutton and surface installation, for outdoor or indoor use.

It is equipped for a surface installation, it has a treated aluminum box, resistant baked paint, hermetic seal, security screws and mechanical push buttons.
Versions of Panphone Emergency SOS are available in different colors for different applications, services or intercom projects: Yellow (Information) and Red (Emergency or SOS).
It is ideal for establishments where wiring is not possible or required (voice or data), allowing greater versatility and fast in installation. Dialing automatic to a phone number by pressing the button through the cellular mobile network. It can be used as an intercom and as a remote access control.

It allows dialing up to 10 pre-configured numbers that are dialed sequentially in case there is an error in the call or no answer.
It has 2 dry contact relays that operate independently, for connection of electric doors, which can be activated from remote telephone (with code, SMS or missed call). They can also be activated from external devices (such as card readers, biometric, proximity, etc.), since it has digital inputs to which buttons and sensors can also be connected. It can generate alarms by calling a telephone number with the activation of some sensor input.

The SOS Emergency version is available to comply with the CTE SUA9 / SI 3-7 building standard.

Now GSM 4G/LTE intercoms can have pre-recorded messages that indicate the status or activity. These messages can be in several languages, Spanish (Spanish), English, Portuguese and Catalan, are available, other languages ​​upon request.

Its physical characteristics also offer high strength and durability, allowing to be used outdoors to face the climet changes. It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments and so on (see common uses).

FeaturesProduct VersionsCommon uses

Available Versions*:

  • Surface
  • 1 Button
  • Yellow and Red

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct connection via telephone by Cellular Mobile Line (GSM, WCDMA or 4G/LTE).
  • Sequence dialing to 10 programmed numbers.
  • Illuminated indication (LED) in call status.
  • With 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any telephone or by making a call or SMS
  • Resistant anti-vandal case format, for indoor or outdoor for environmental conditions.
  • Contact input (sensors, alarms, etc.) to make a call.
  • Wiring, AC power
  • It works with the most common mobile cellular network frequencies (GSM, WCDMA or 4G/LTE), which allows its use in coverage areas of different networks.

*Note: Note, visit ‘ product’s versions’ to check references.

Emergency-SOS GSM 4G/LTE Panphone

Reference

C410-A-E

C410-R-E

Color Yellow RAL 1023 Red RAL 3020
Formato Surface
Button or piezo-electric Keyboard 1 button
Communication Protocols GSM, WCDMA, LTE-TDD y LTE-FDD
Comunicación por Red móvil Yes
Frequency Bands GSM (Mhz) B8 (900) y B3 (1800)
Frequency Bands WCDMA 3G (Mhz) B1 (2100), B8 (900) y B5 (850)
Frequency Bands 4G/LTE cat 4 (Mhz) B1 (FDD 2100), B3 (FDD 1800); B5 (FDD 850), B7 (FDD 2600); B8 (FDD 900), B20 (FDD 800DD), B38 (TDD 2600), B40 (TDD 2300) y B41 (TDD 2500)
Dimensions (HxWxD) mm 188x115,9x40
Color Camera No
Accessibility Braille and light indication (Led) for call status
Comply with CTE SUA9/SI 3-7 Yes



  • Centralized access control for different sites or doors.
  • For attended or unattended gateways
  • Remote sites and of difficult access.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For parking space
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines

Quote request



GSM 4G/LTE Card

Intercom Card for GSM 4G/LTE Mobile Cellular line


Intercom Card for standard Mobile Cellular line

Automatic dial to a phone number by pressing external button or keyboard through the cellular mobile network (GSM, WCDMA or 4G/LTE). It can be used as intercom or remote access control.

It is ideal for establishments where wiring is not possible or required (voice or data), allowing greater versatility and fast in installation.

It allows dialing up to 10 pre-configured numbers that are dialed sequentially in case there is an error in the call or no answer.

It has specific pin connectors for external devices such as keyboard, pushbutton, loudspeaker and proximity card reader.

It has 2 dry contact relays that operate independently, for connection of electric doors, which can be activated from remote telephone (with code, SMS or missed call). They can also be activated from external devices (such as card readers, biometric, proximity, etc.), since it has digital inputs to which buttons and sensors can also be connected. It can generate alarms by calling a telephone number with the activation of some sensor input.

GSM 4G/LTE intercom cards can have pre-recorded messages that indicate the status or activity. These messages can be in several languages, Spanish (Spanish), English, Portuguese and Catalan, are available, other languages ​​upon request.

It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments and so on (see common uses).

Any customization is possible , since the integrated PCB card allows installation in any preferred device, box, or structure, allowing its use in multiple applications and projects. It can be a component within a set of more complex systems.
It can be used to develop products or manufacture solutions using the branding of the integrator.

FeaturesProduct VersionsCommon uses

Available Versions*:

  • GSM 4G/LTE PCB Card

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct connection via telephone by Cellular Mobile Line (GSM, WCDMA or 4G/LTE).
  • Connectors for external devices such as keyboard, pushbutton, loudspeaker and proximity card reader.
  • Sequence dialing to 10 programmed numbers.
  • With 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any telephone or by making a call or SMS
  • Opening doors by dailing code from external keyboard
  • PCB Card Format for any Case, device or structure.
  • Loudspeaker included of 1W output
  • Contact input (sensors, alarms, etc.) to make a call.
  • Wiring, AC power
  • It works with the most common mobile cellular networks (GSM, WCDMA or 4G/LTE), which allows its use in coverage areas of different networks.

*Note: visit ‘product’s versions’ to check references.

GSM 4G/LTE PCB Card

Reference

GSM 4G/LTE

Communication Protocols GSM, WCDMA, LTE-TDD y LTE-FDD
Comunicación por Red móvil Yes
Frequency Bands GSM (Mhz) B8 (900) y B3 (1800)
Frequency Bands WCDMA 3G (Mhz) B1 (2100), B8 (900) y B5 (850)
Frequency Bands 4G/LTE cat 4 (Mhz) B1 (FDD 2100), B3 (FDD 1800); B5 (FDD 850), B7 (FDD 2600); B8 (FDD 900), B20 (FDD 800DD), B38 (TDD 2600), B40 (TDD 2300) y B41 (TDD 2500)
Dimensions (HxWxD) mm 82x75x14 mm
  • Centralized access control for multiple sites or doors.
  • Difficult access Remote sites.
  • Unattended gatehouses or guardhouses.
  • Parking barriers and Tollgates.
  • Healthcare and geriatric environments
  • Gas stations, unattended service stations
  • For elevators and kiosks
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • Intercom in prisons
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Intercoms for operating rooms and hospitals, etc.
  • Vending machines

Quote request



GSM 4G/LTE Panphone Series 4

Anti-Vandalic GSM 4G/LTE intercom


Anti-vandalism intercom for Mobile Cellular line (GSM, WCDMA or 4G/LTE), high strength and durability with with piezoelectric switches and surface installation, for outdoor or indoor use.



It is ideal for establishments where wiring is not possible or required (voice or data), allowing greater versatility and fast in installation. Dialing automatic to a phone number by pressing the button through the cellular mobile network. It can be used as an intercom and as a remote access control.

It allows dialing up to 10 pre-configured numbers that are dialed sequentially in case there is an error in the call or no answer.

It has 2 dry contact relays that operate independently, for connection of electric doors, which can be activated from remote telephone (with code, SMS or missed call). It can also be activated from external devices (such as card readers, biometric, proximity, etc.), since it has digital inputs to which buttons and sensors can also be connected. It can generate alarms by calling a telephone number with the activation of some sensor input.

Now GSM 4G/LTE intercoms can have pre-recorded messages that indicate the status or activity. These messages can be in several languages, Spanish (Spanish), English, Portuguese and Catalan, are available, other languages ​​upon request.

It has an IP-55 housing, it can be used outdoors in places inhospitable. It is perfect for SOS points, access control multiple sites or doors, intercoms for gas stations, specific areas, hotels and hospital environments and so on (see common uses).

FeaturesProduct VersionsCommon uses

Available Versions*:

  • Surface or Flush Mount
  • Numeric keyboard or button
  • Only PCB Card

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct connection via telephone by Cellular Mobile Line (GSM, WCDMA or 4G/LTE).
  • Sequence dialing to 10 programmed numbers.
  • With 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any telephone or by making a call or SMS
  • IP-55 Resistant anti-vandal case for indoor or outdoor for environmental and hygenic conditions.
  • Contact input (sensors, alarms, etc.) to make a call.
  • The Keyboard version allows to open doors through a code
  • Wiring, AC power
  • It works with the most common mobile cellular network frequencies (GSM, WCDMA or 4G/LTE), which allows its use in coverage areas of different networks.

*Note: Note, visit ‘ product’s versions’ to check references.

GSM Panphone Series 4

Reference

4410

4420

4430

4440

GSM 4G/LTE

Formato Surface Flush Mount PCB Card
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard N/A
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
100x85x15
Communication Protocols GSM, WCDMA, LTE-TDD y LTE-FDD
Comunicación por Red móvil Yes
Frequency Bands GSM (Mhz) B8 (900) y B3 (1800)
Frequency Bands WCDMA 3G (Mhz) B1 (2100), B8 (900) y B5 (850)
Frequency Bands 4G/LTE cat 4 (Mhz) B1 (FDD 2100), B3 (FDD 1800); B5 (FDD 850), B7 (FDD 2600); B8 (FDD 900), B20 (FDD 800DD), B38 (TDD 2600), B40 (TDD 2300) y B41 (TDD 2500)
  • Control de acceso para distintas sedes o puertas.
  • Garitas o porterías remotas desatendidas.
  • Sedes remotas y de difícil acceso.
  • Barreras de parking y peajes.
  • Gasolineras, estaciones de servicio desatendidas.
  • Garajes.
  • Ascensores.
  • Comunicadores de emergencia en carreteras (puntos SOS).
  • Estaciones de transporte publico.
  • Sistemas de accesibilidad para personas de movilidad reducida.
  • Zonas Refugio o de Emergencia en hoteles, hospitales y otro tipo de edificaciones.
  • Maquinas de vending.

Quote request

Go to top
