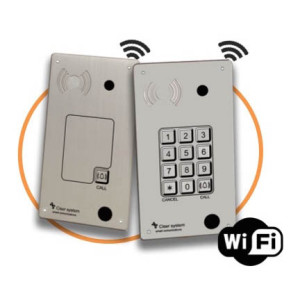

Anti-Vandalic WIFI IP-SIP intercom


Anti-vandalism WIFI for IP-SIP extension standard, high resistance and durability with piezoelectric switches, for outdoor or indoor use.



It has the same technical charactrestics of the Panphone IP-SIP series 4 plus the WIFI, that could be usfel for places that hard to have cables. It allows automatic dialing to (PBX) IP-SIP extension standard through a mechanical press button or keyboard without wire.

The Panphone card reader version (for access control) is available. It has great audio quality and allows you to connect external devices (biometric readers, proximity, etc.) and manage I / O inputs and outputs for LEDs, Indicators and other devices. It also includes an IP port, to connect IP devices to the data network without additional wiring.

It has an IP-55 housing and its installation versatility, they can be used outdoors at any point with WIFI network coverage. Its approximate wireless range is 100 meters in open spaces and 50 in closed spaces. It is perfect for SOS points, access control multiple sites or doors, intercoms for parking, gas stations, specific areas, hotels and hospital environments among others (see common uses).

FeaturesProduct VersionsCommon uses

Available Versions*:

  • Surface or Flush mount
  • Numeric keyboard or button
  • With Card reader

General features:

  • Handsfree intercom with hanging and automatic hang-up
  • Direct Connection to IP SIP of PBX centrales IP with SIP standard via WIFI
  • Easy configuration through Web Server integrated in the equipment.
  • Plate with 2 independent dry contact relays. Ideal for doors that activate electrically or external devices (card readers, fingerprint, etc).
  • Opening doors remotely (activation of relays) with dailing code from any extension.
  • IP-55 Resistant anti-vandal case for indoor or outdoor for environmental and hygenic conditions.
  • The Keyboard version allows to open doors through a code.
  • Extra IP port for connection of other devices.
  • Approximate wireless range of 100 meters in open spaces and 50 in closed spaces.
  • Wiring required, only power.
  • Winegard ports for other devices (biometrics, readers, etc.)
  • LED ports for indicators.
  • It works with Centrals (PBX) with Asterisk IP software and power stations such as Alcaltel, Avaya, Cisco, Elastix, Epygi, Denwa, Matrix, Nec, Panasonic, Siemens, Hiper PBX, Xorcom, Yeastar and Zycoo, and others.

*Note: visit ‘ product’s versions’ to check references.

WIFI Panphone

Reference

4246i

4247i

4248i

4249i

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera No
Card Reader No

WIFI Panphone with Card Reader

Reference

4250i

4251i

4252i

4253i

Format Surface Flush Mount
Button or piezo-electric Keyboard 1 button Keyboard 1 button Keyboard
Dimensions (HxWxD) mm 187x104x32 External 217,41×128,8×8,6
Internal 180×91,40×30
Color Camera No
Card Reader Yes
  • Centralized access control for different sites or doors.
  • For attended or unattended gateways
  • Care and geriatric environments.
  • Parking and tolls
  • Gas stations, unattended service stations
  • For evelators
  • Emergency intercom on the high way (SOS points)
  • Public transportation stations
  • Accessibility systems for reduced mobility people.
  • Intercom in prisons
  • For specific areas or emergency in hotels, hospitals and other types of builidng
  • Vending machines
  • Intercoms for operating rooms and hospitals, etc.
  • Public address system
